Chairs and rockers in steam-bent and solid wood, made by hand.

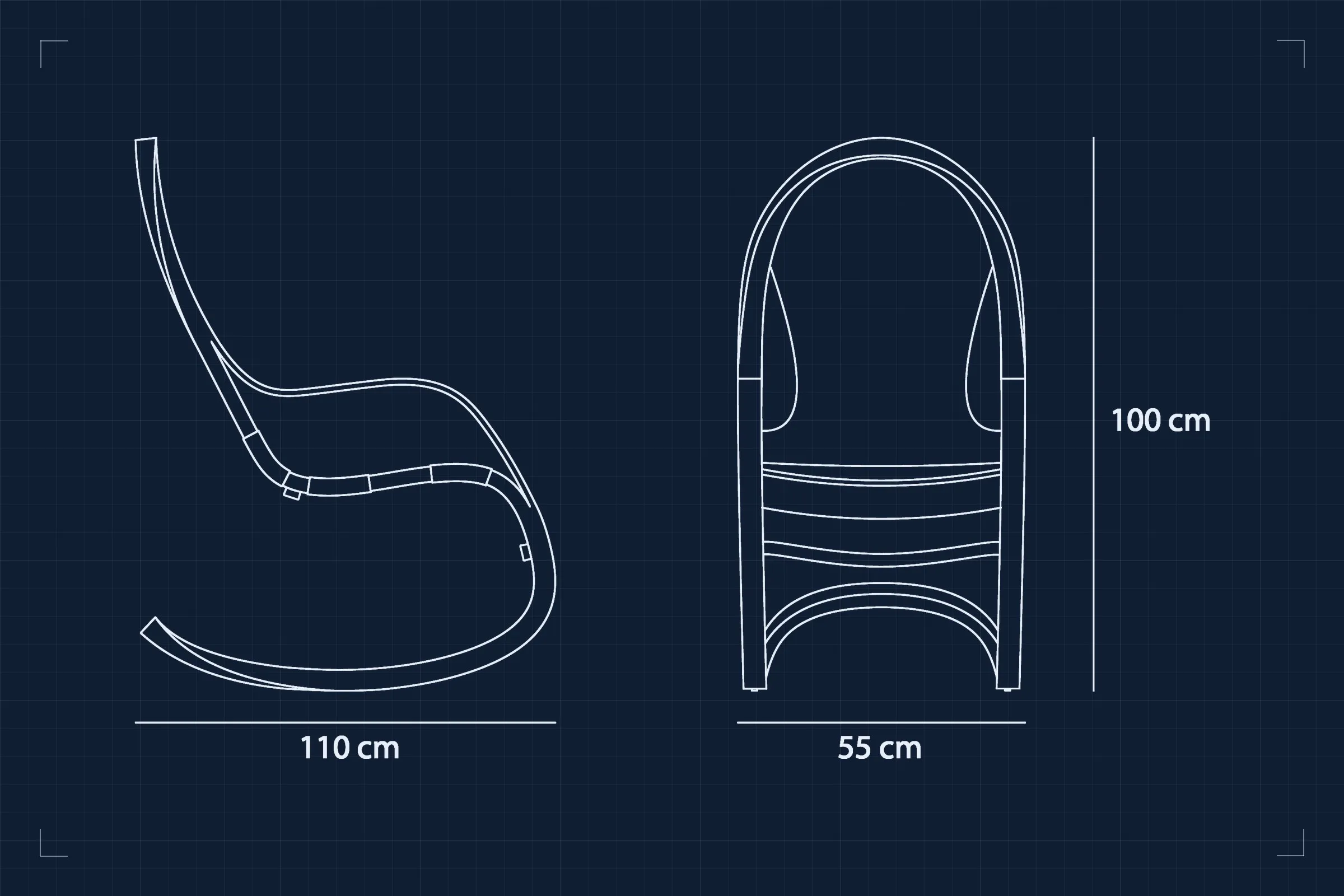

Marino Rocker, side and front elevations, 110 × 55 × 100 cm — Marino Rocker, side and front elevations, 110 × 55 × 100 cm01

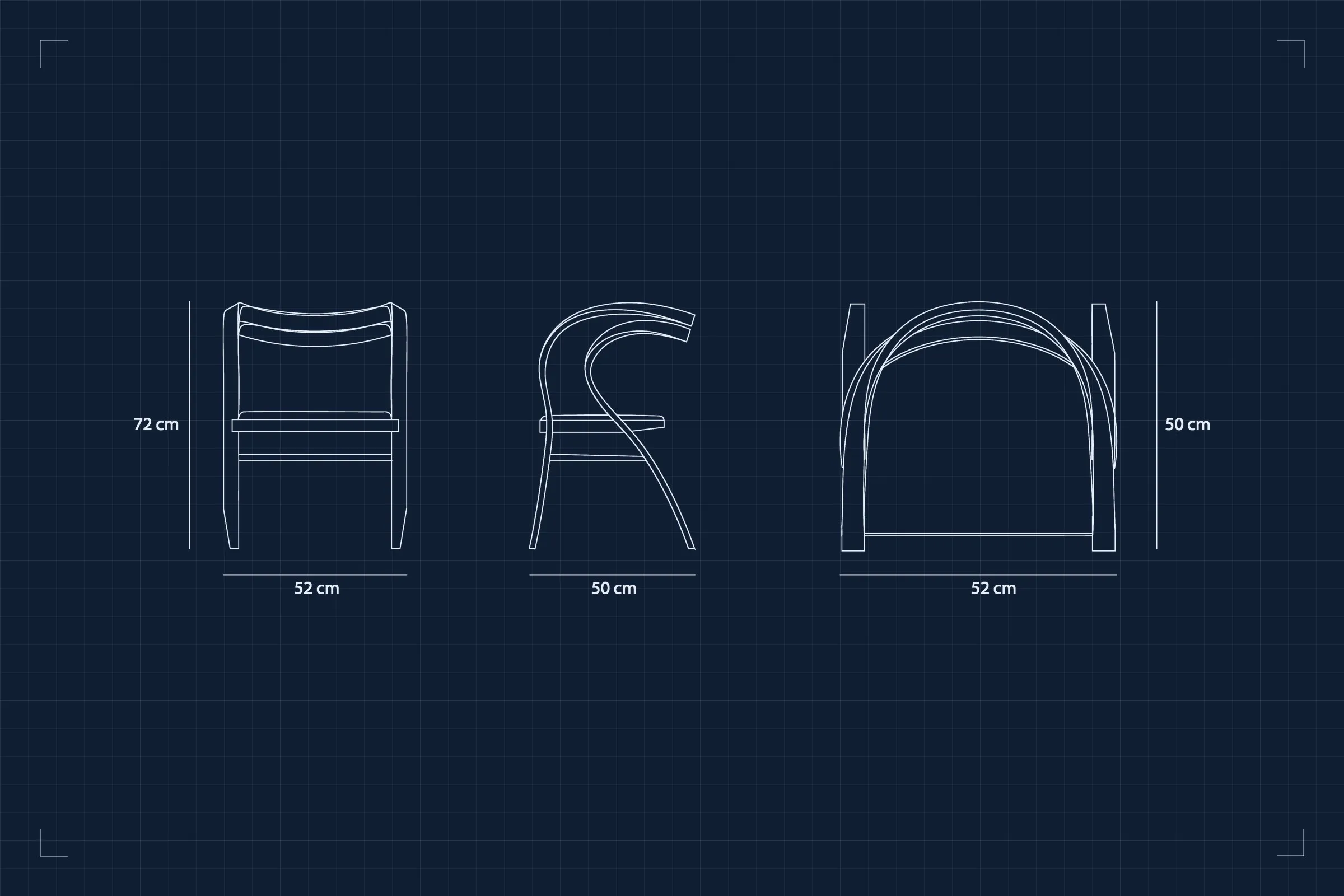

Nina & Beni, front, side and plan elevations — Nina & Beni, front, side and plan elevations02

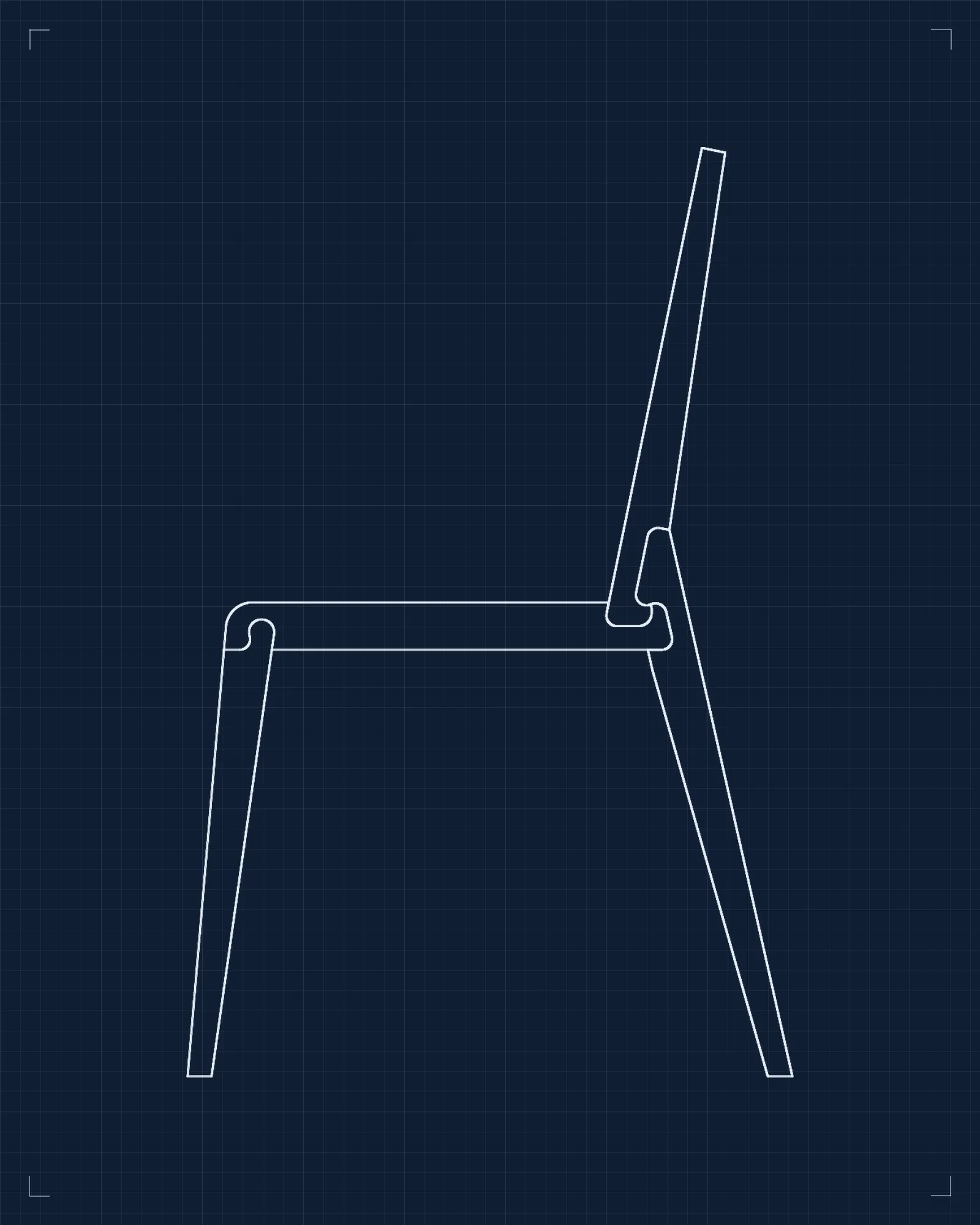

Sapiens, side elevation — Sapiens, side elevation03

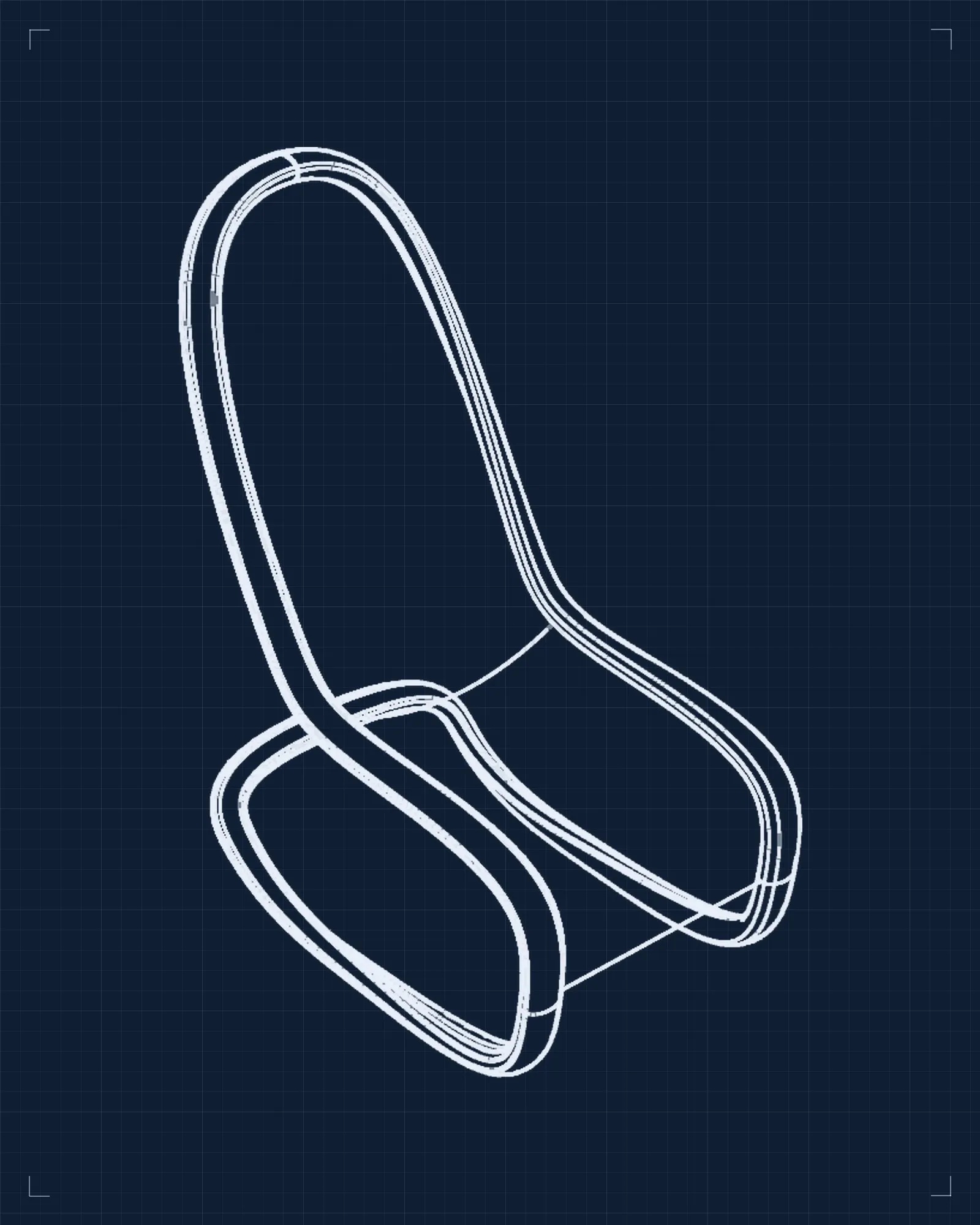

Flect, axonometric drawing — Flect, axonometric drawing04

Marino Rocker · Nina & Beni · Sapiens · FlectDrawings: Andrés Mariño Maza

Design · Drawings by piece22 drawings

01

Marino Rocker

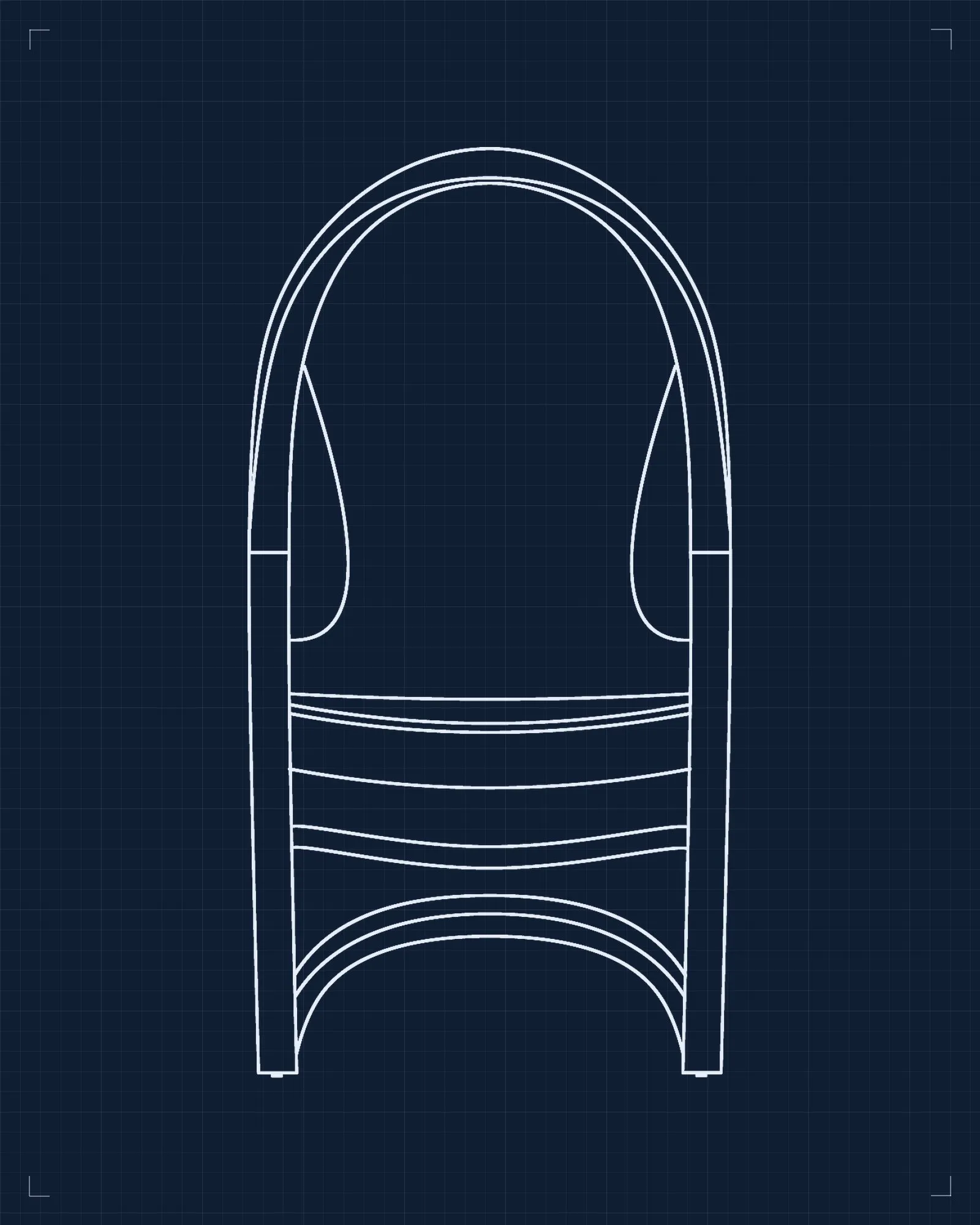

Marino Rocker, front elevation — front elevation01

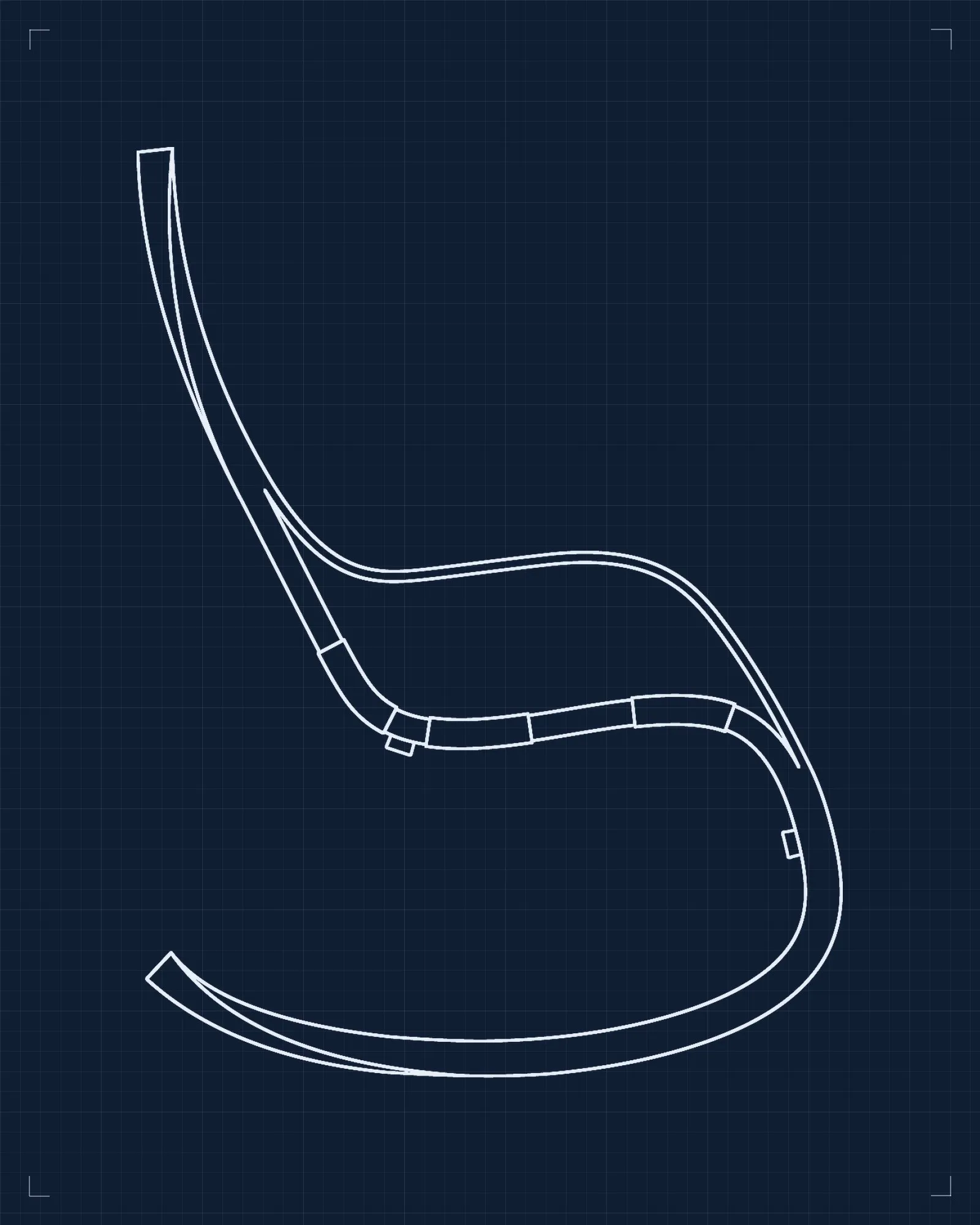

Marino Rocker, side elevation — side elevation02

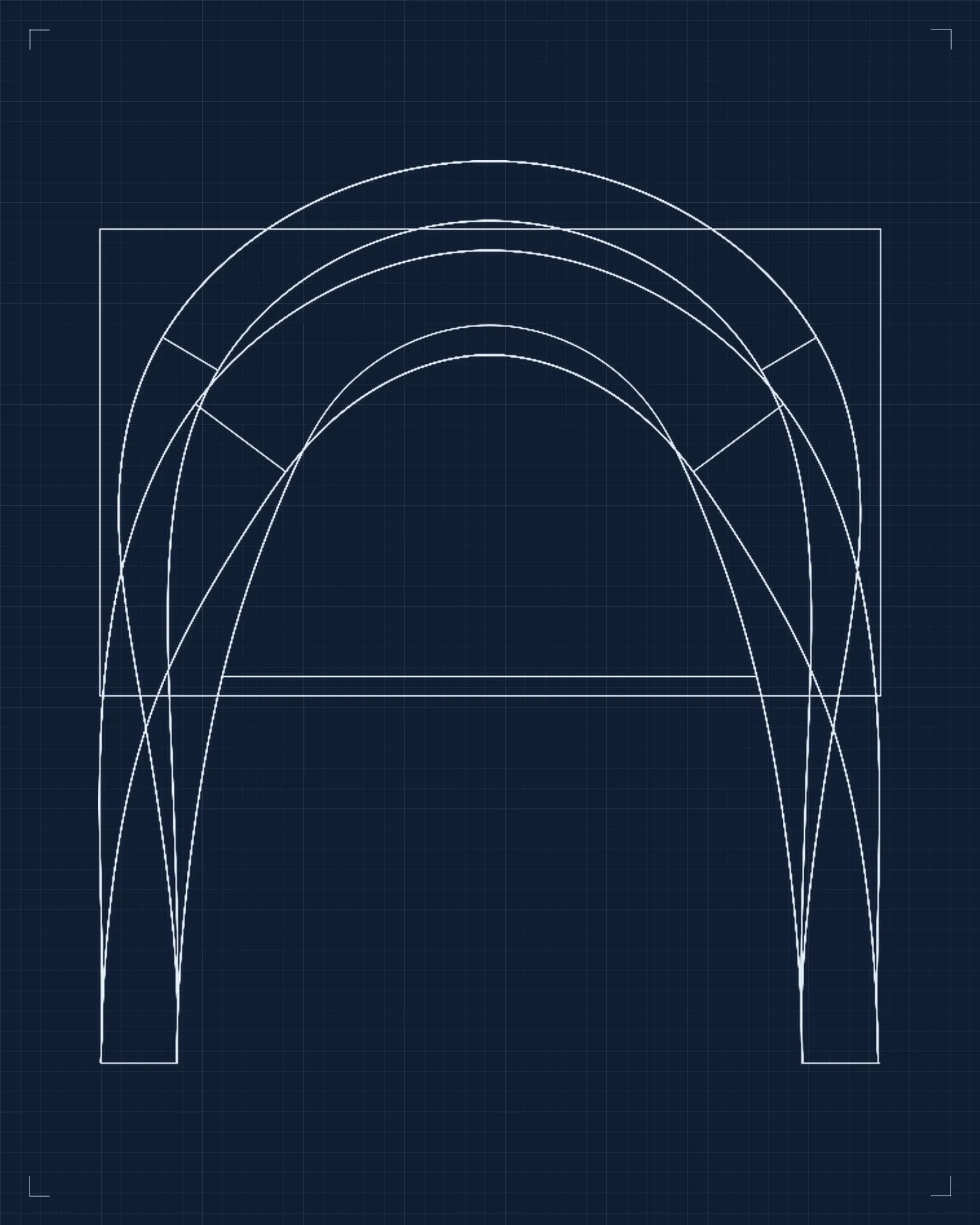

Marino Rocker, bending form for the head piece — bending form for the head piece03

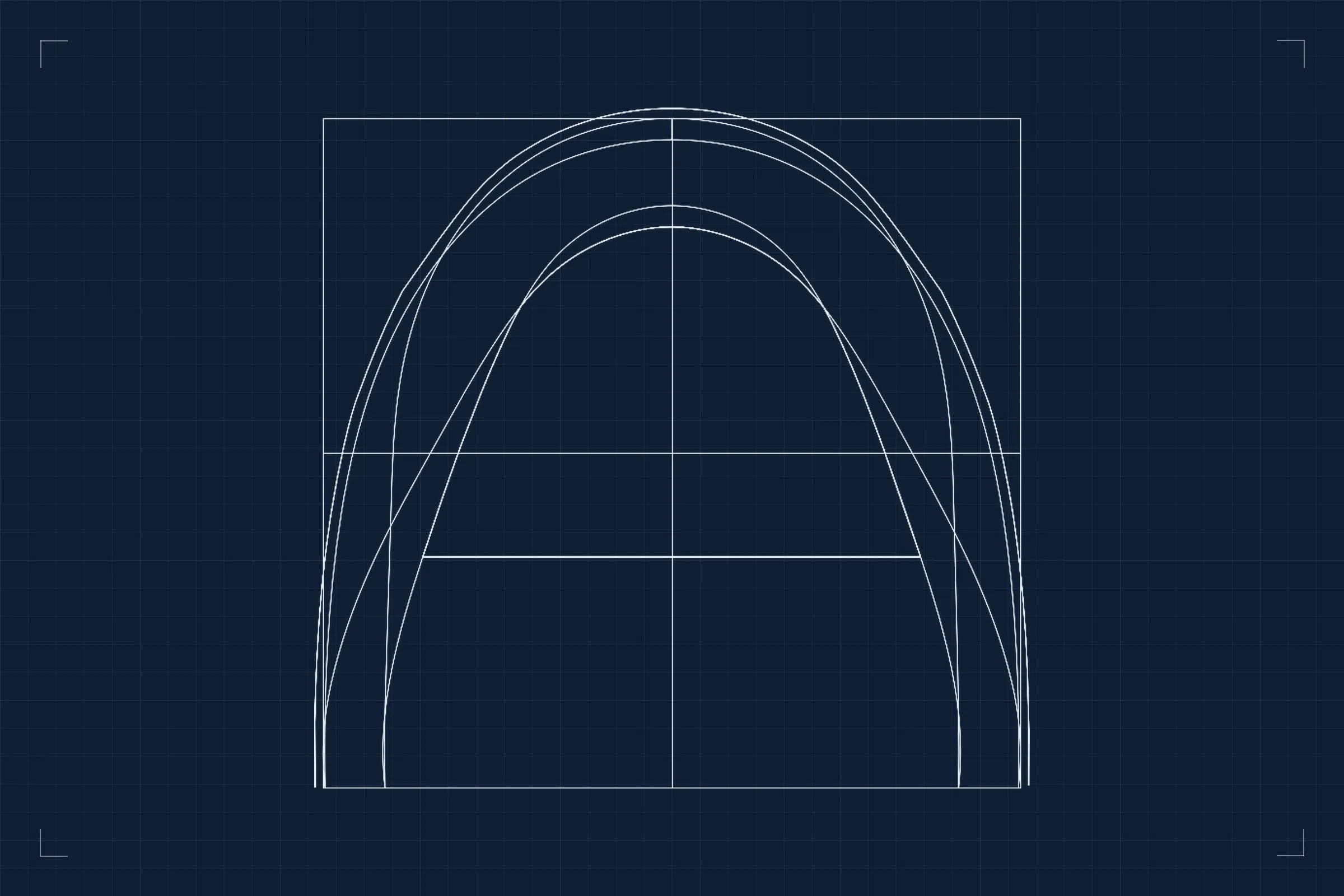

Marino Rocker, bending form, front — bending form, front04

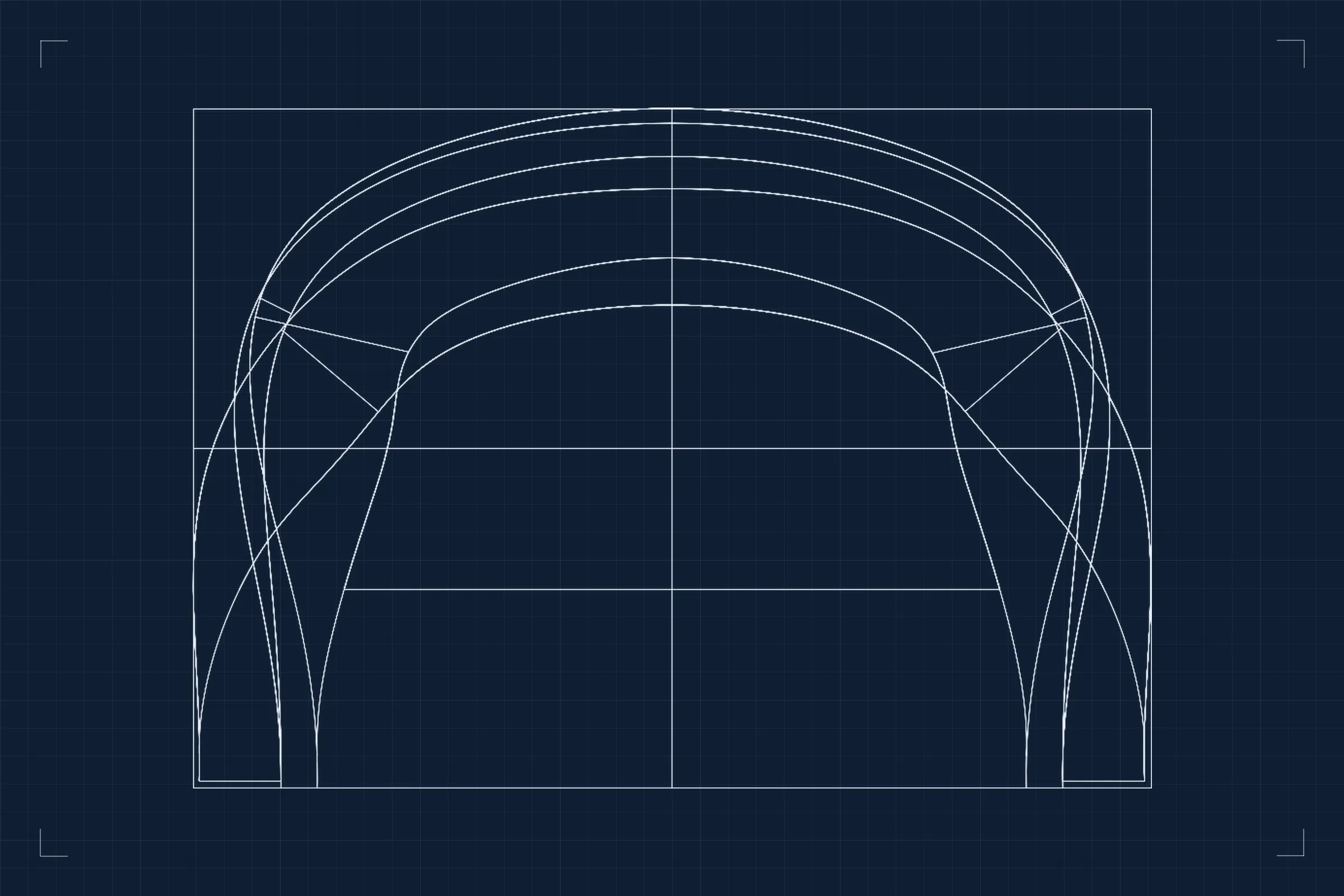

Marino Rocker, bending form for the seat — bending form for the seat05

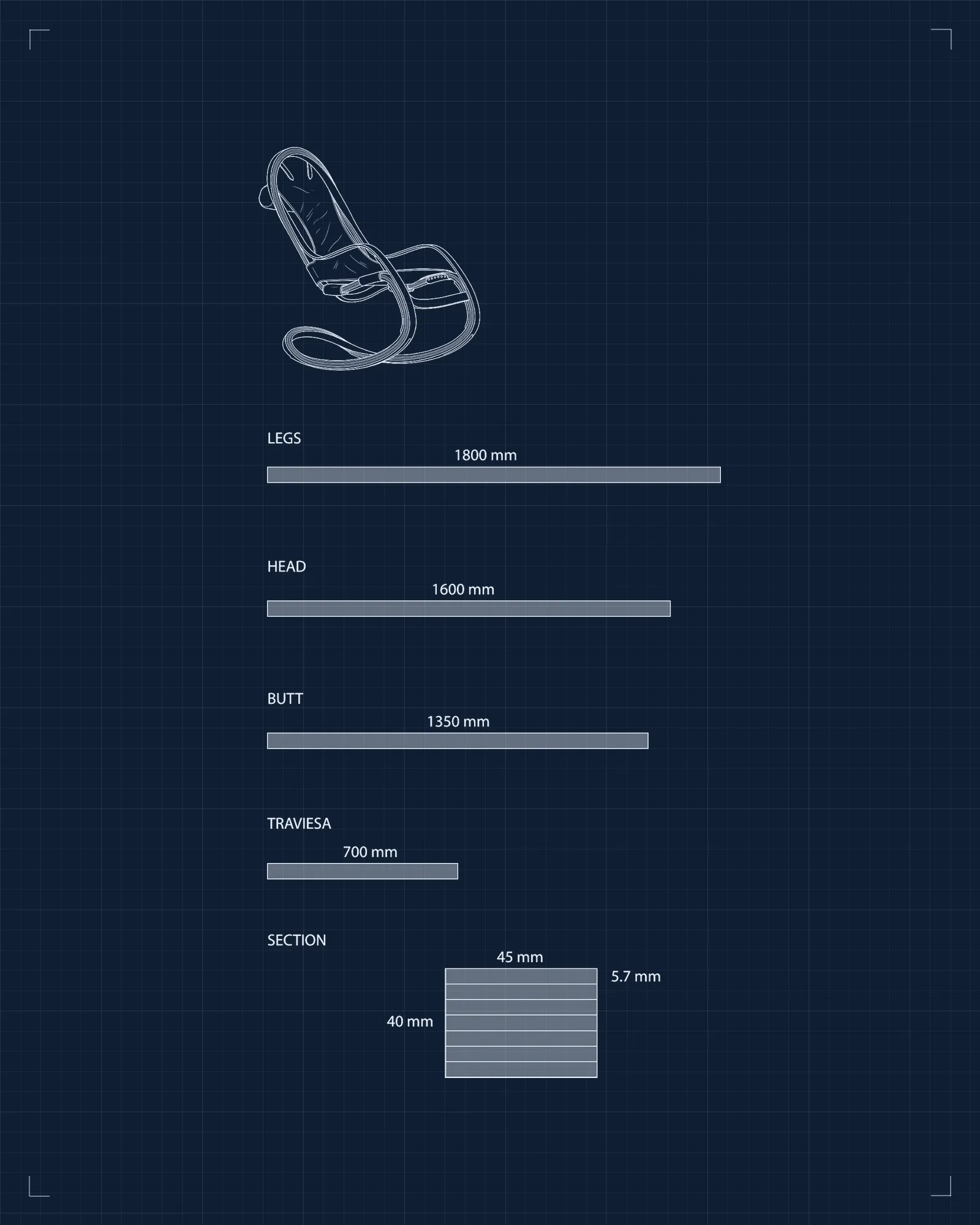

Marino Rocker, lamination lengths and section — lamination lengths and section06

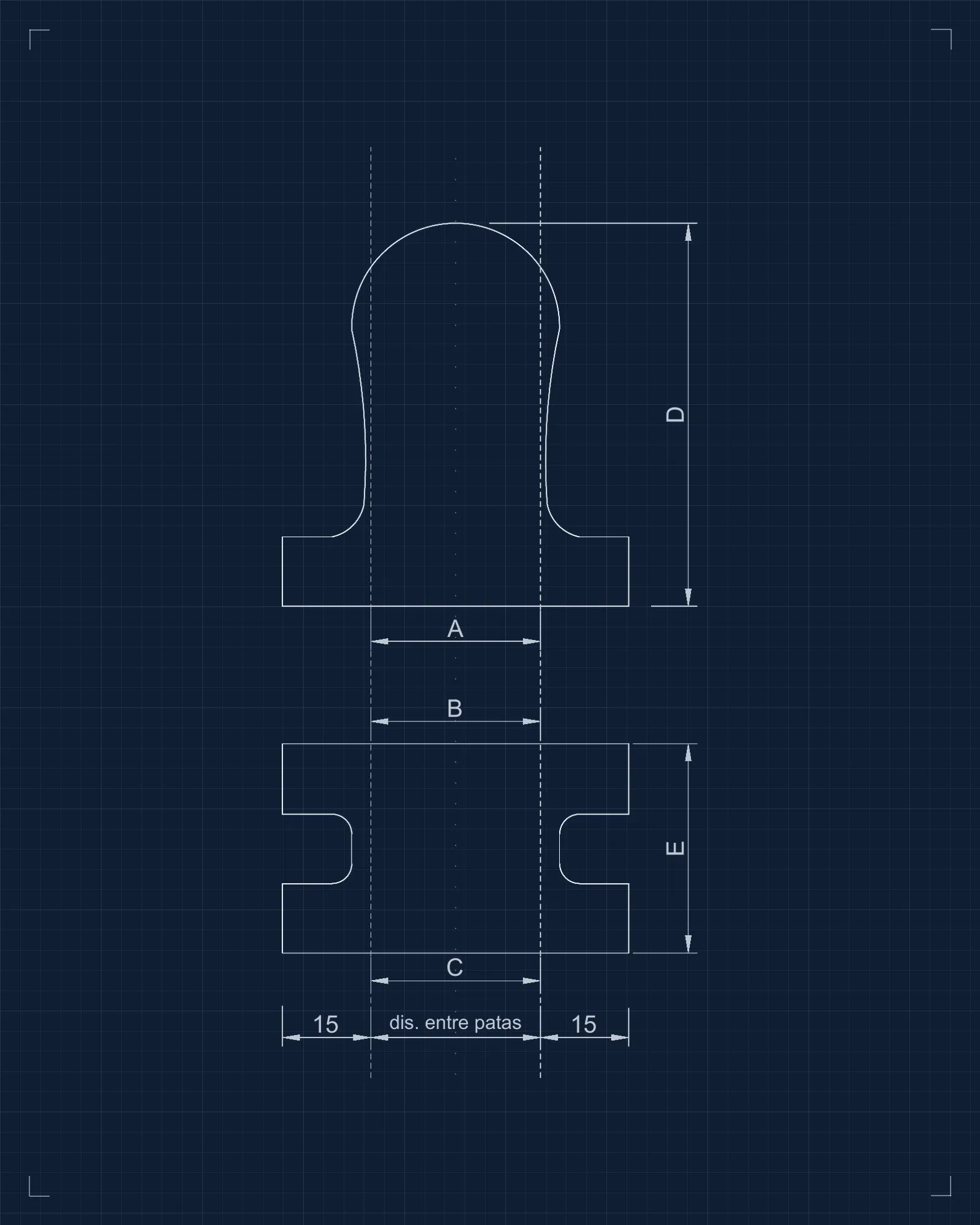

Marino Rocker, leather template — leather template07

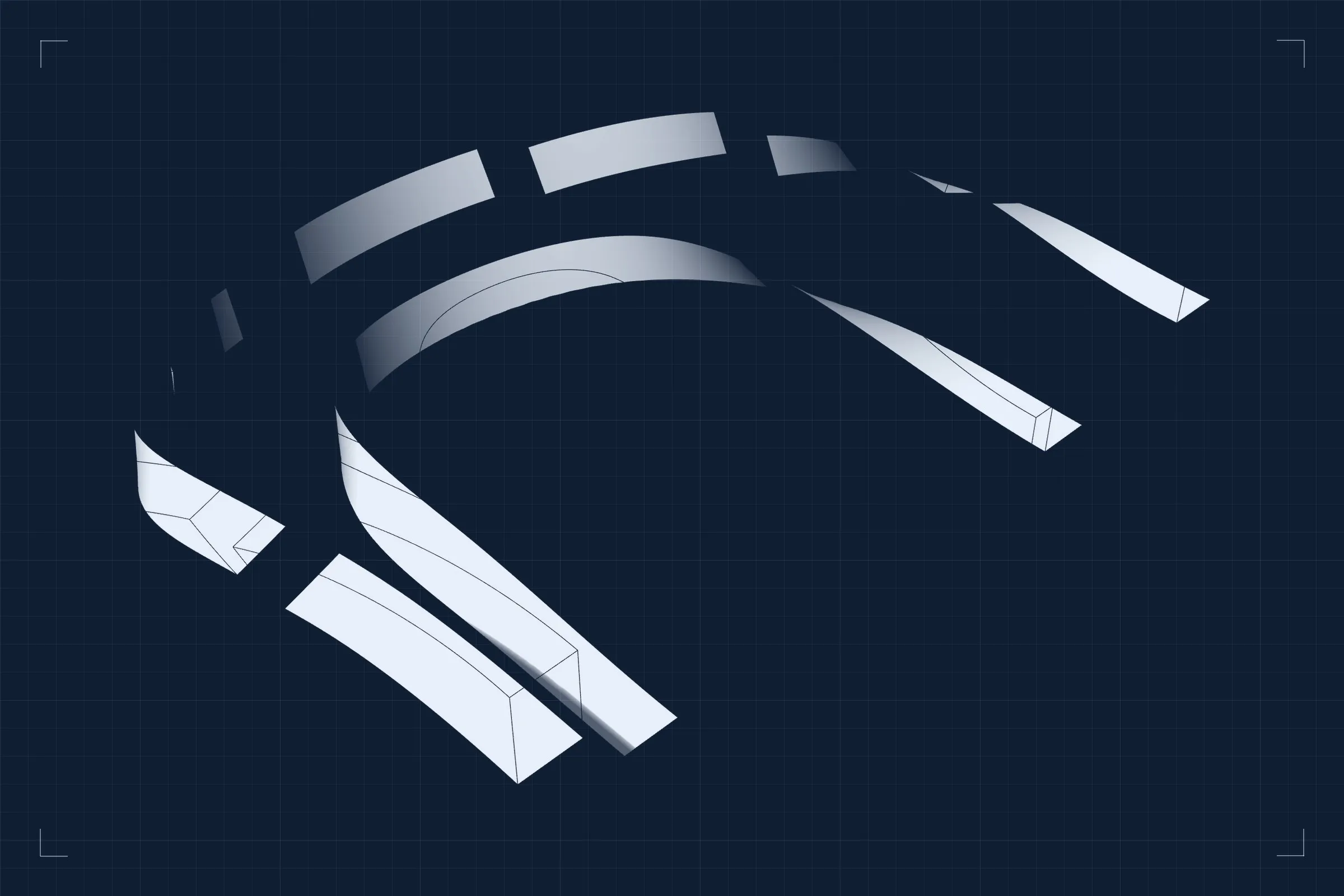

Marino Rocker, exploded 3D view of the laminations — exploded 3D view of the laminations08

02

Nina & Beni

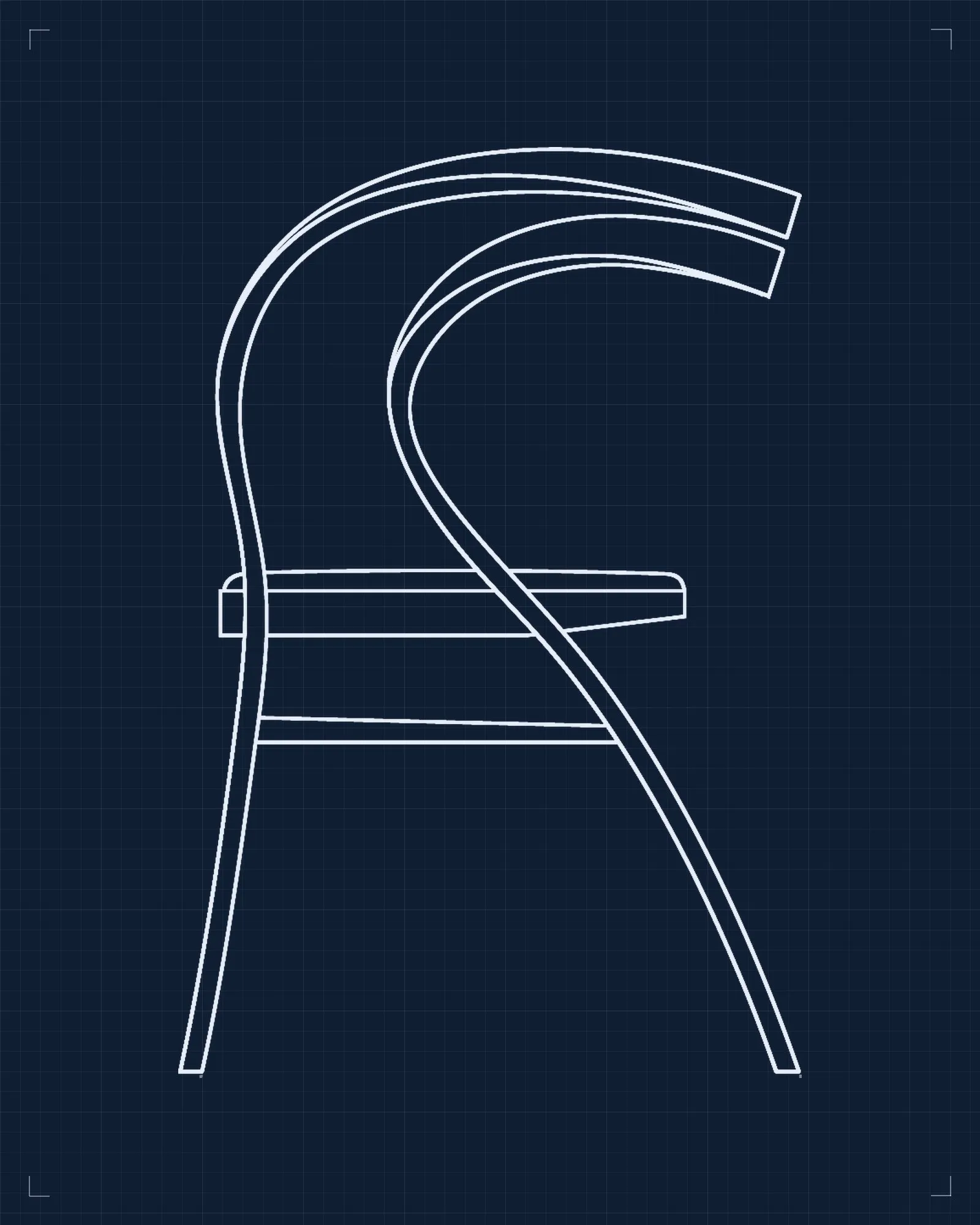

Nina & Beni, side elevation — side elevation01

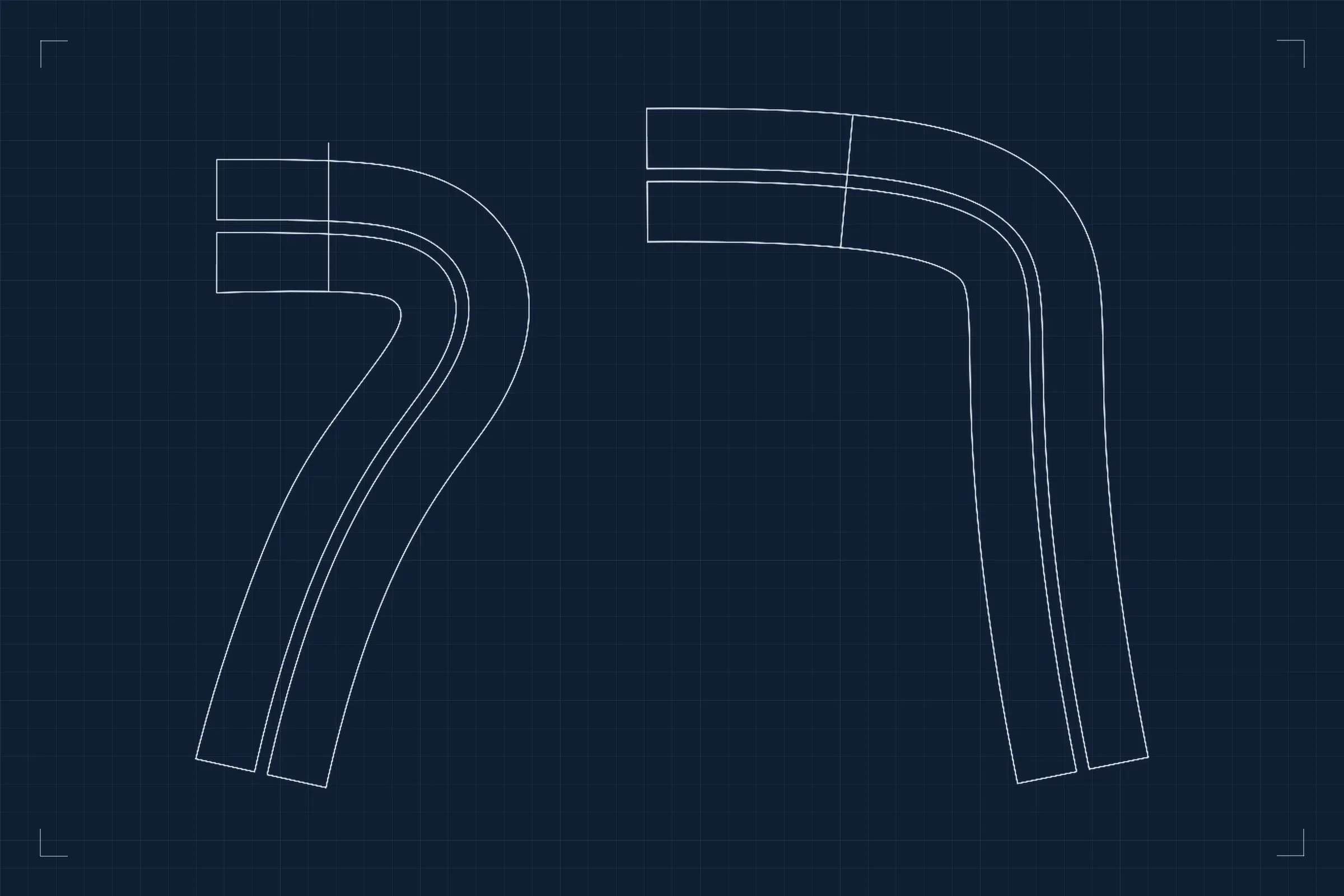

Nina & Beni, steam-bent leg profiles — steam-bent leg profiles02

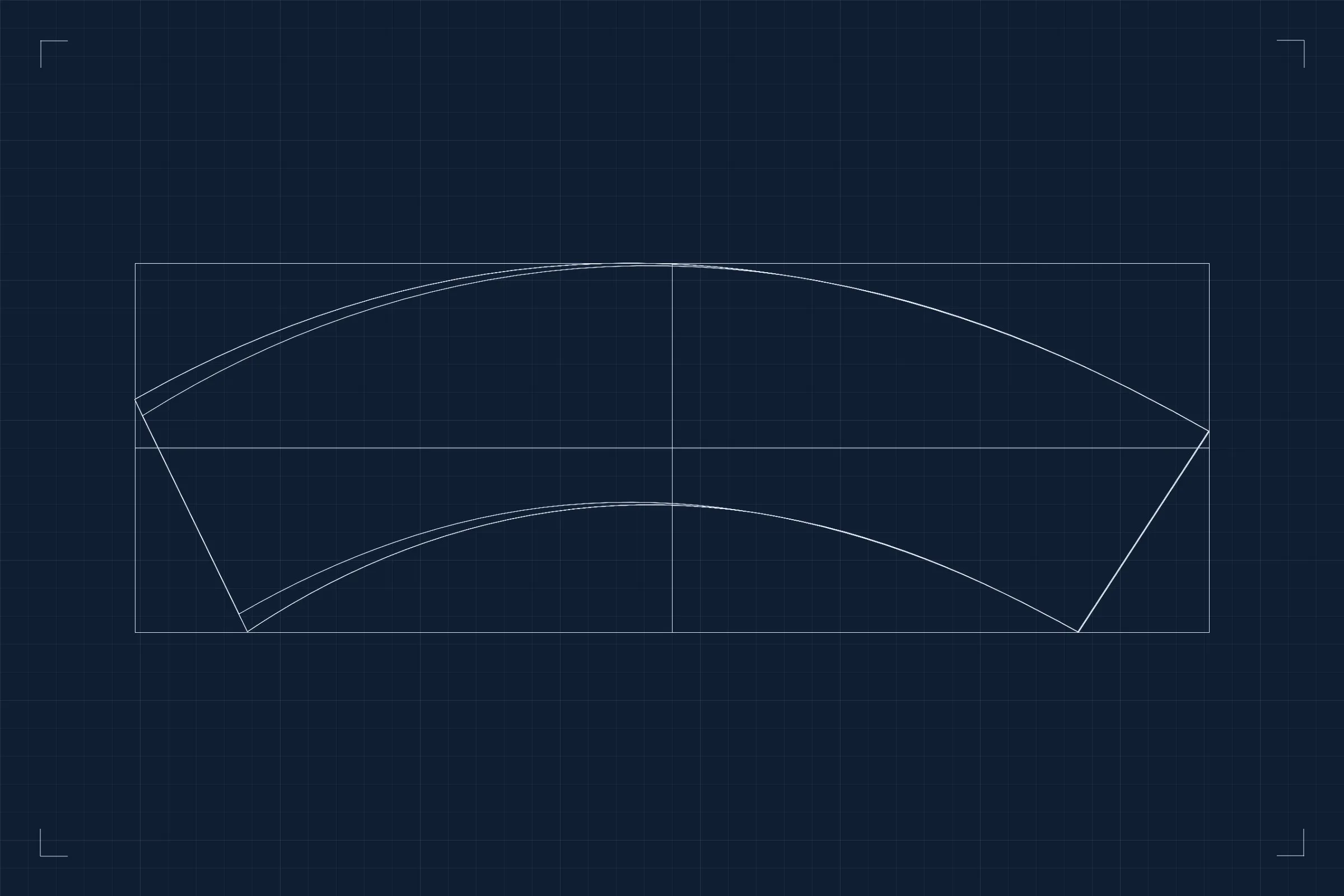

Nina & Beni, bending form for the front leg — bending form for the front leg03

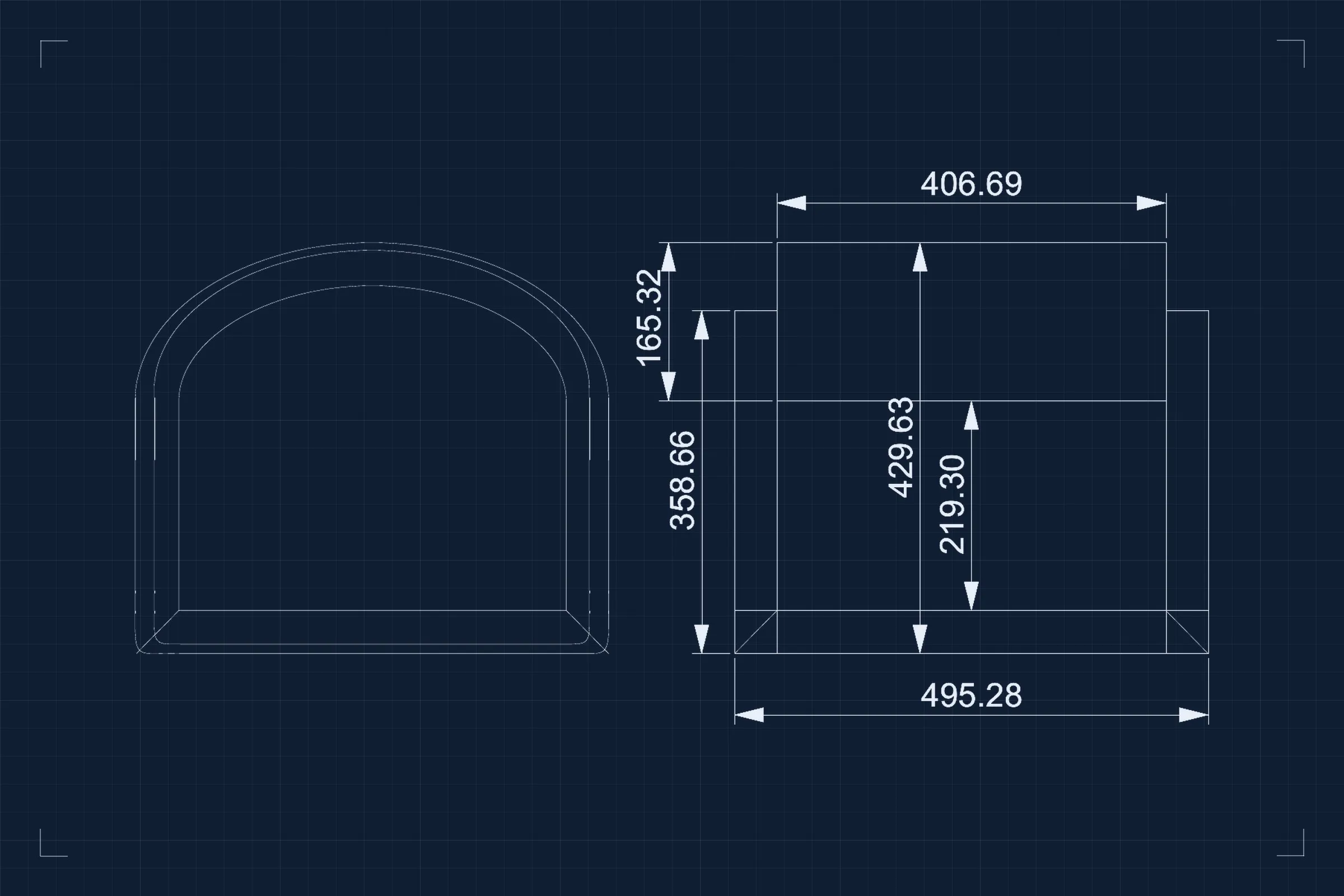

Nina & Beni, seat plan with dimensions — seat plan with dimensions04

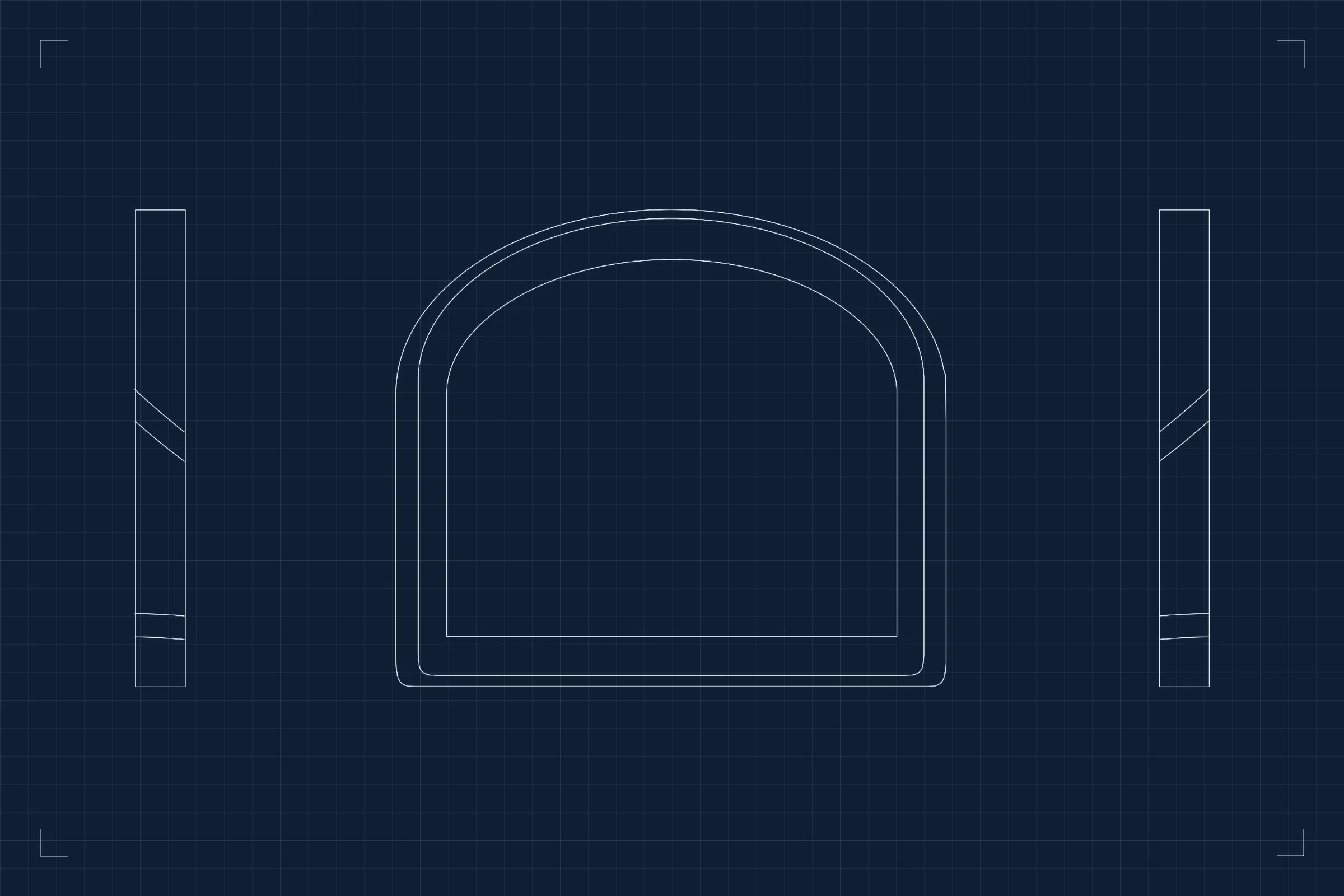

Nina & Beni, side frames, plan — side frames, plan05

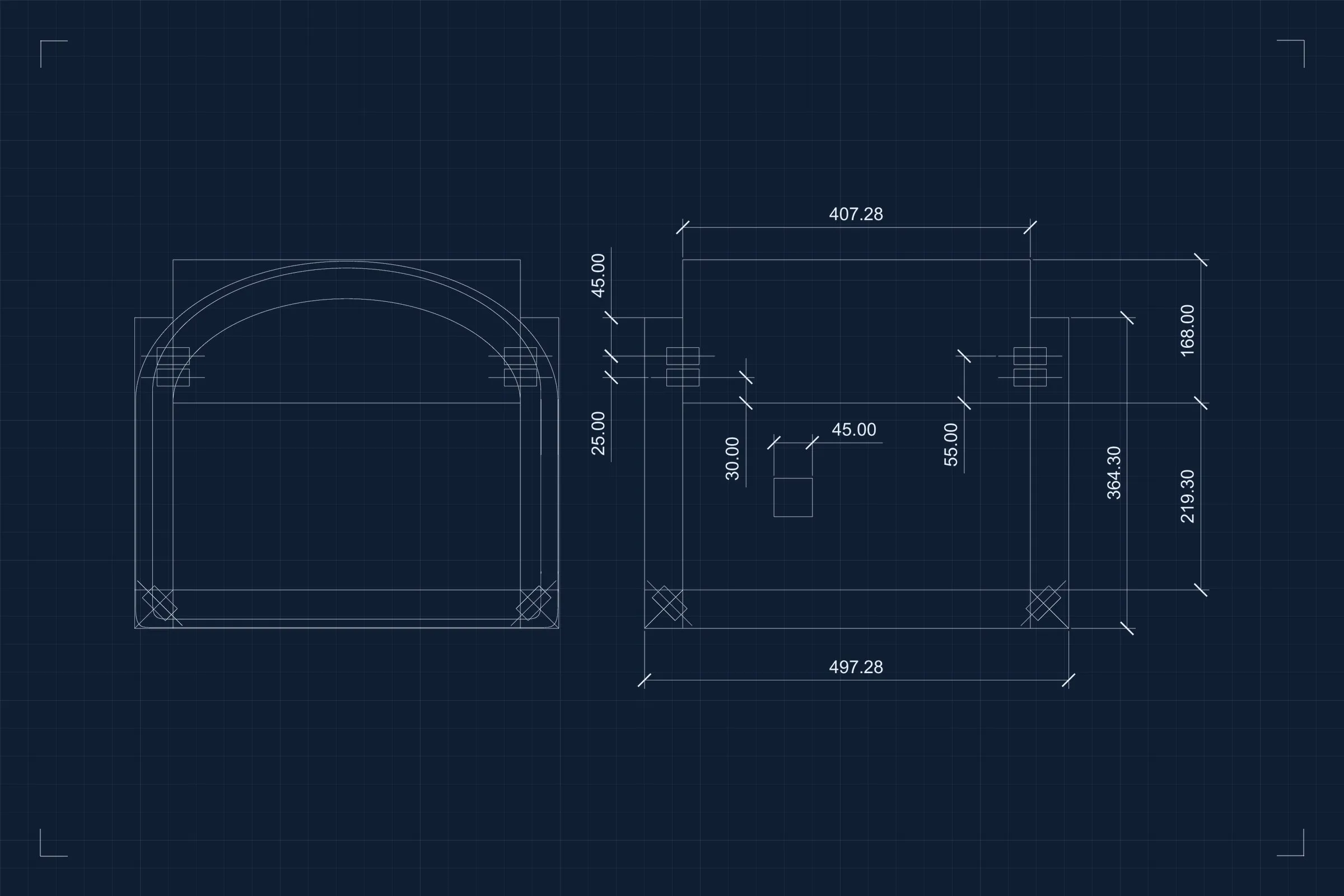

Nina & Beni, seat, dimensioned plan — seat, dimensioned plan06

03

Sapiens

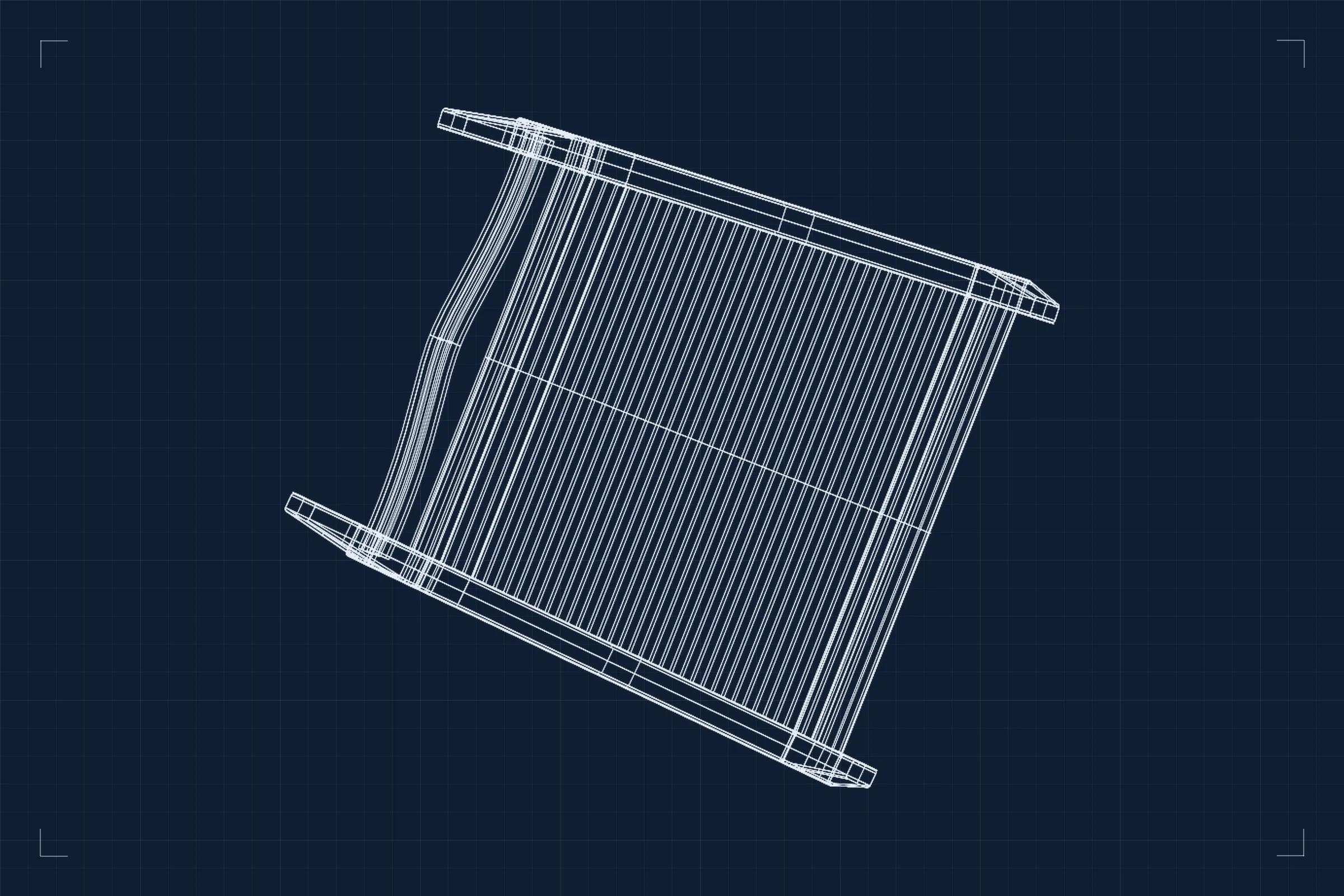

Sapiens, 3D wireframe — 3D wireframe01

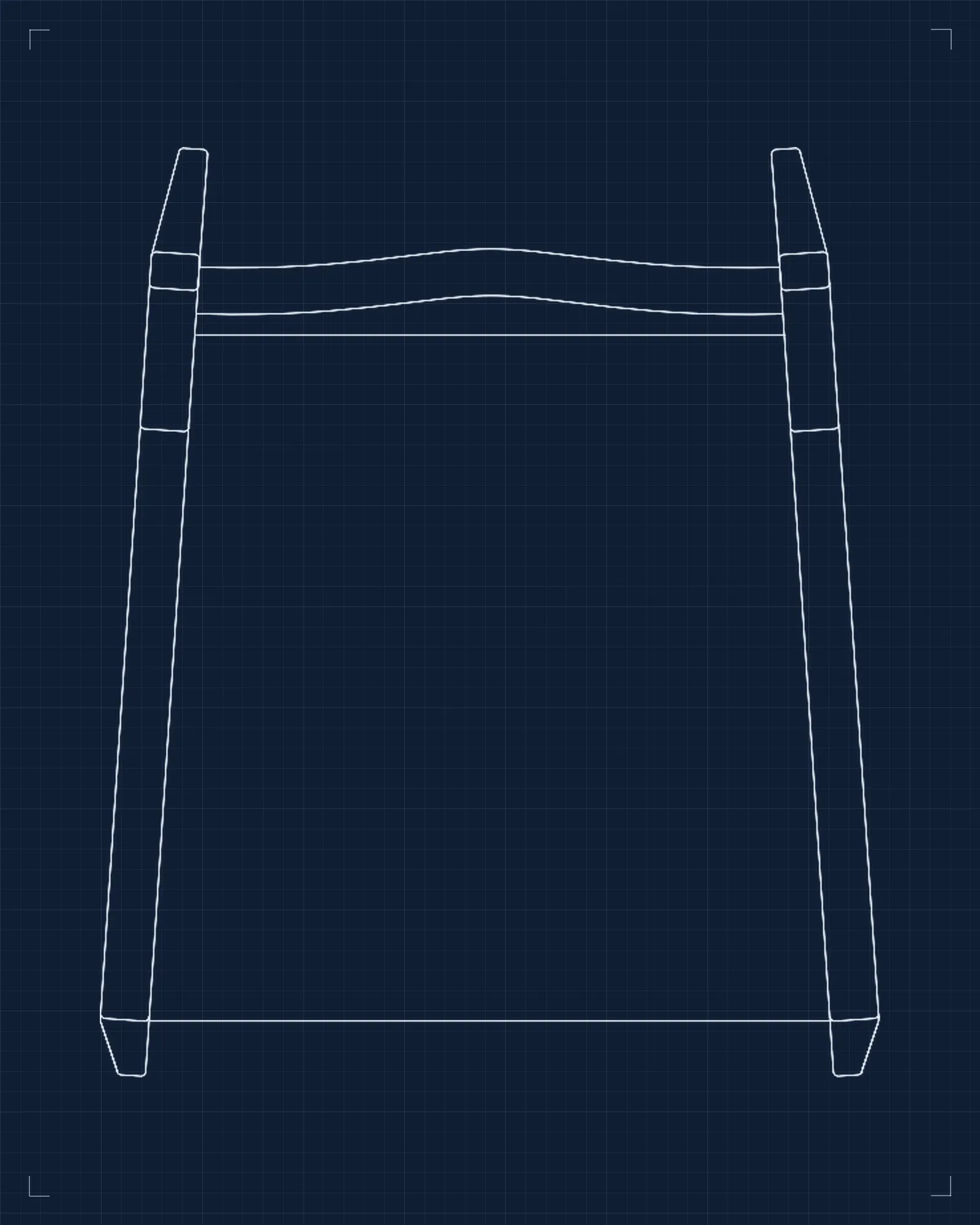

Sapiens, plan — plan02

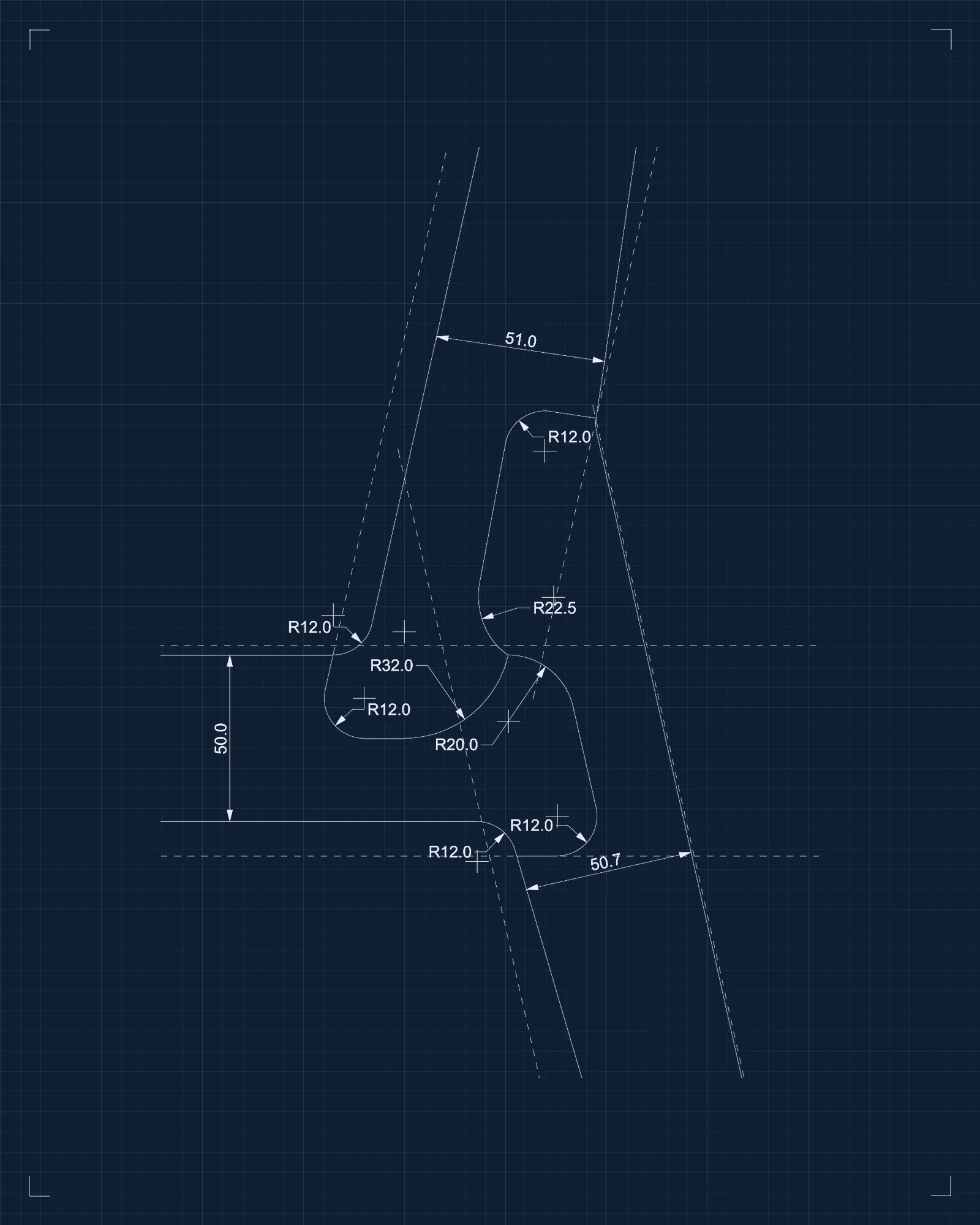

Sapiens, joint geometry — joint geometry03

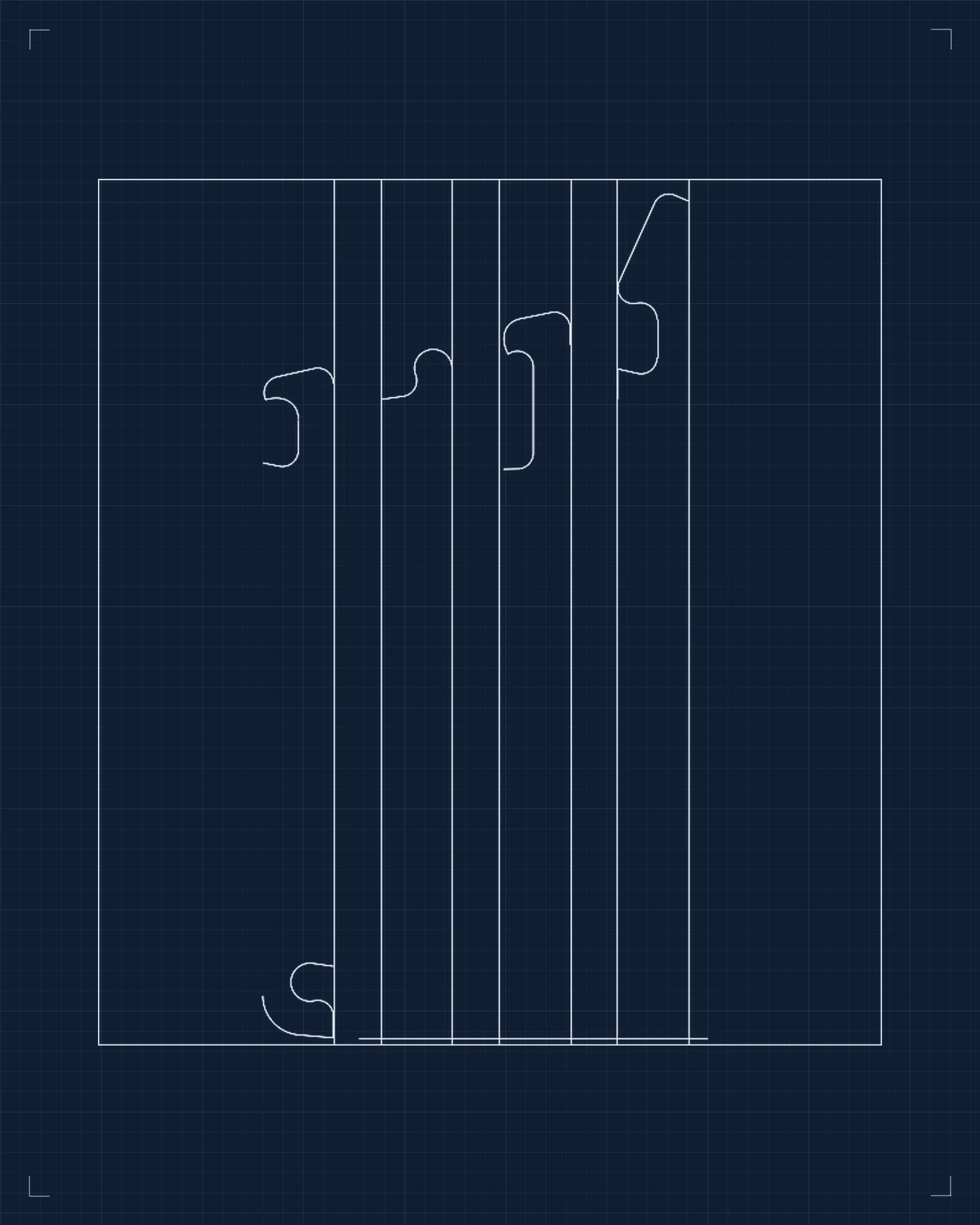

Sapiens, CNC cutting layout — CNC cutting layout04

04

Flect

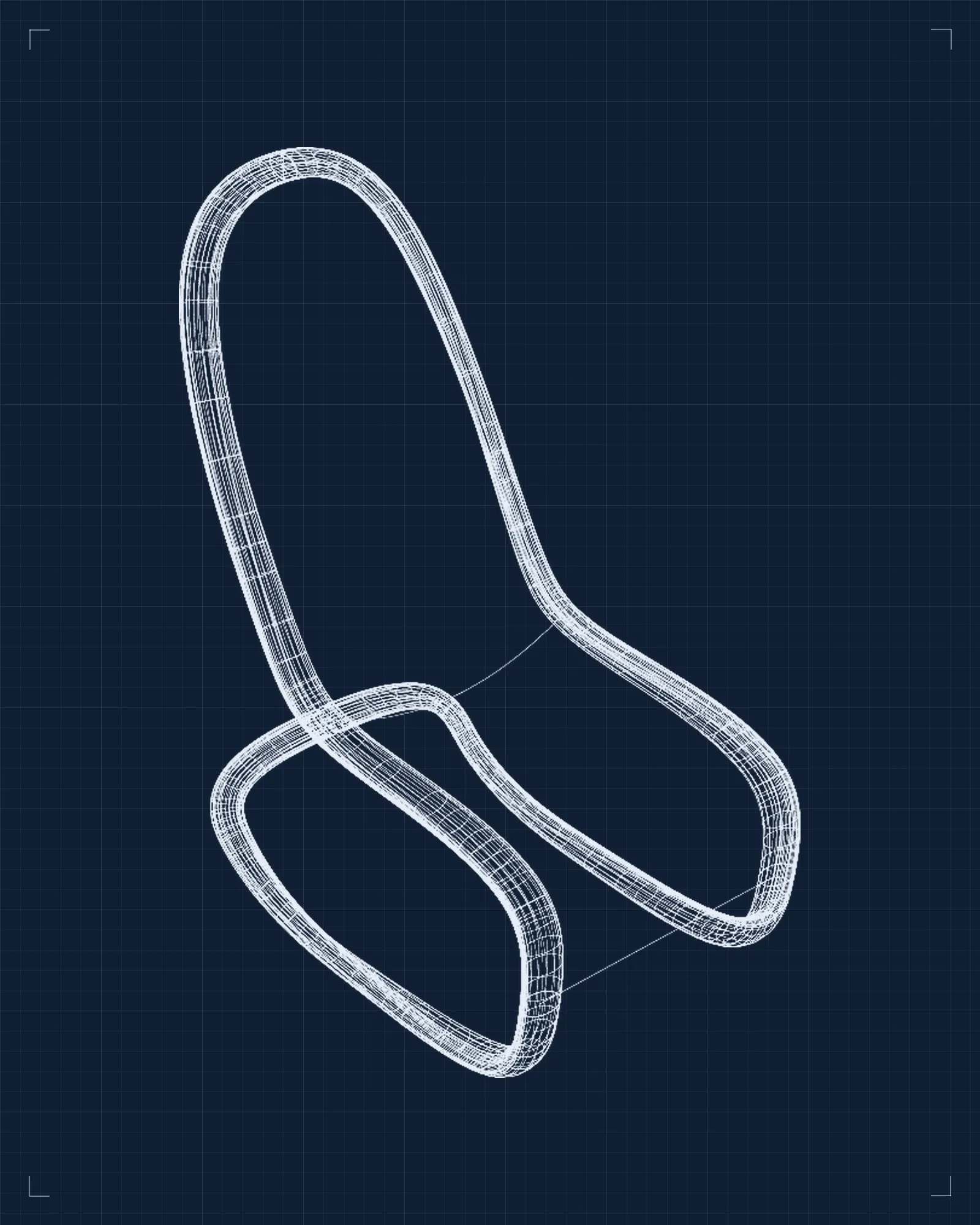

Flect, axonometric line drawing — axonometric line drawing01

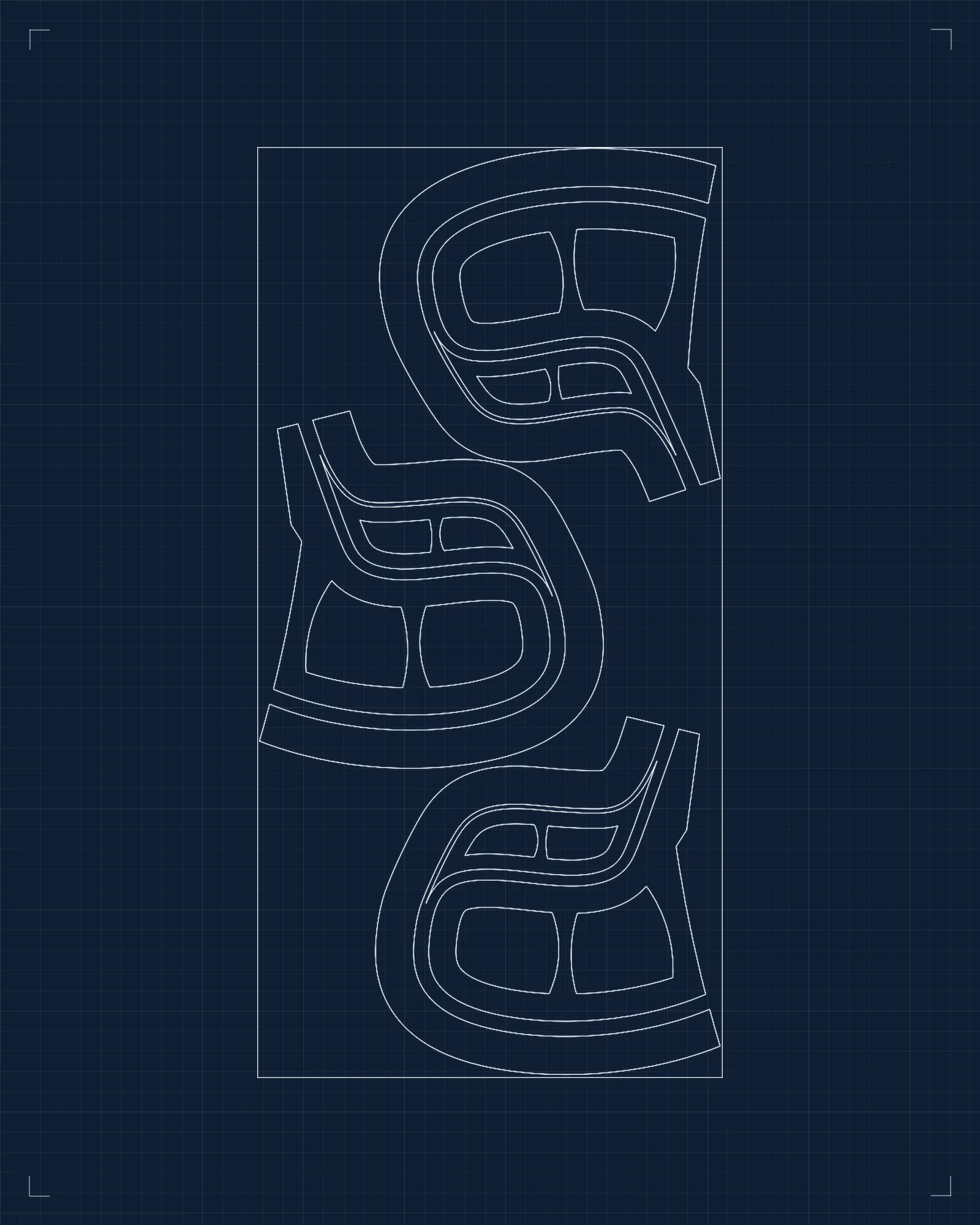

Flect, cutting layout for the parts — cutting layout for the parts02

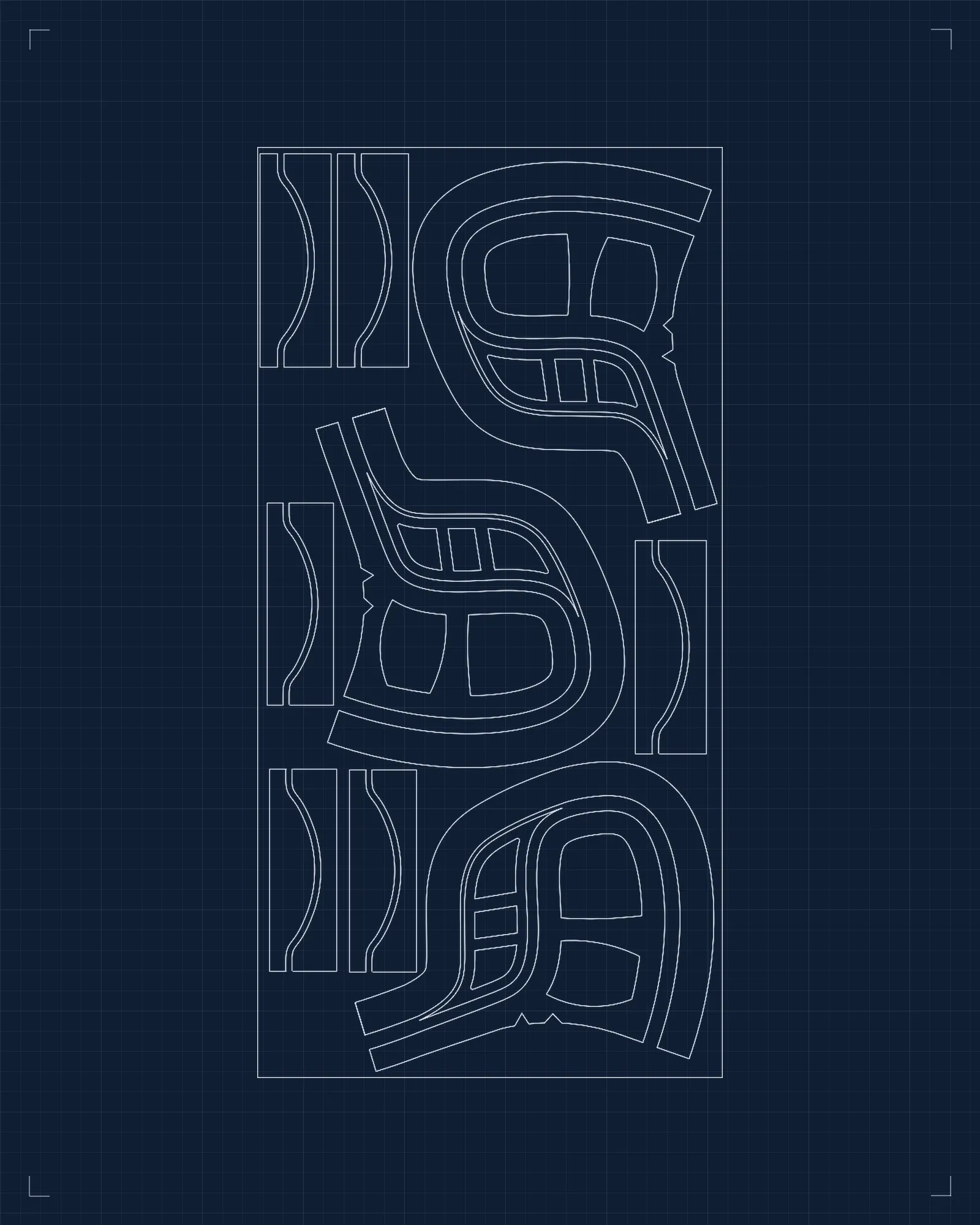

Flect, part and support layout — part and support layout03

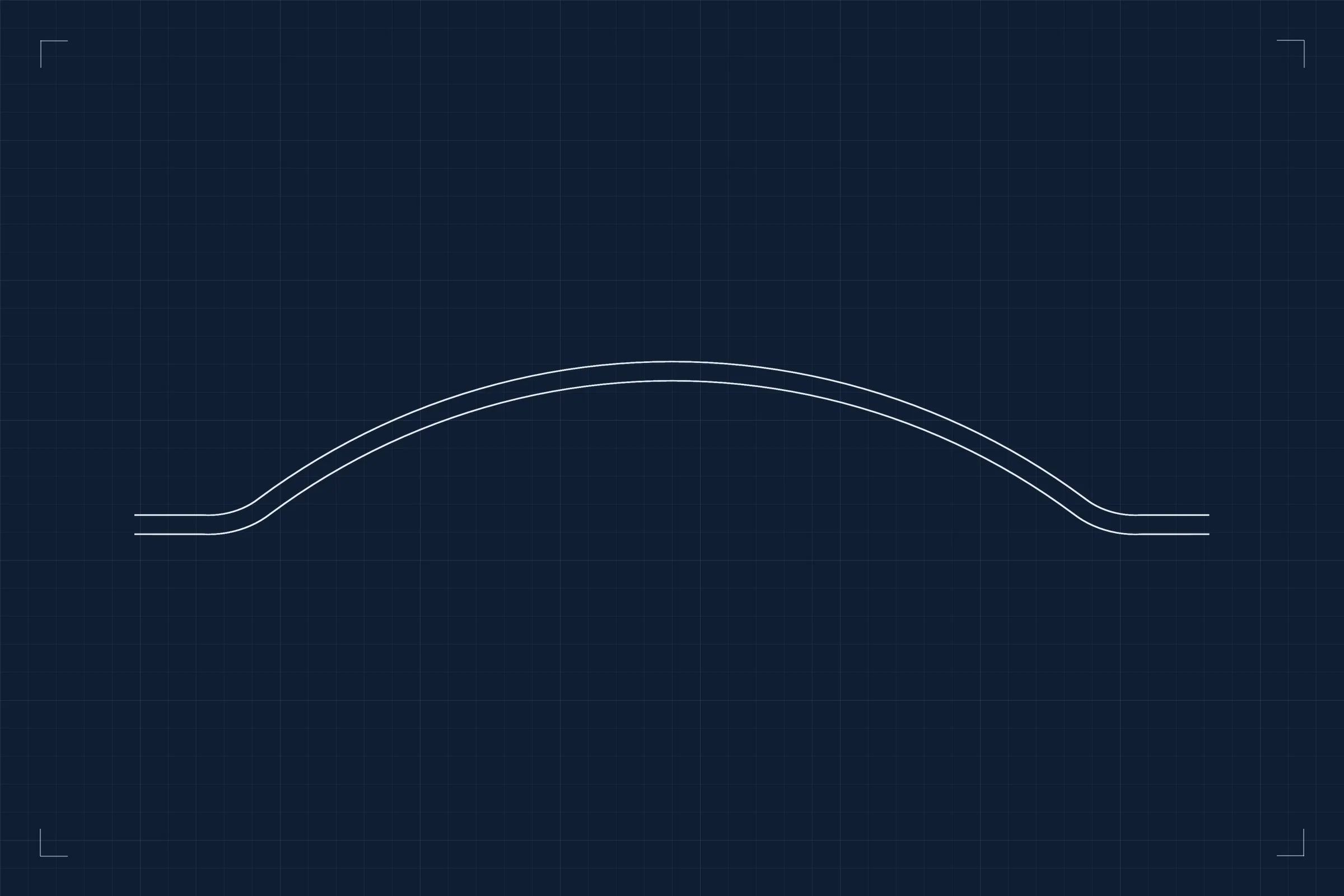

Flect, support jig — support jig04

Elevations, forms, layouts and detailsDrawings: Andrés Mariño Maza

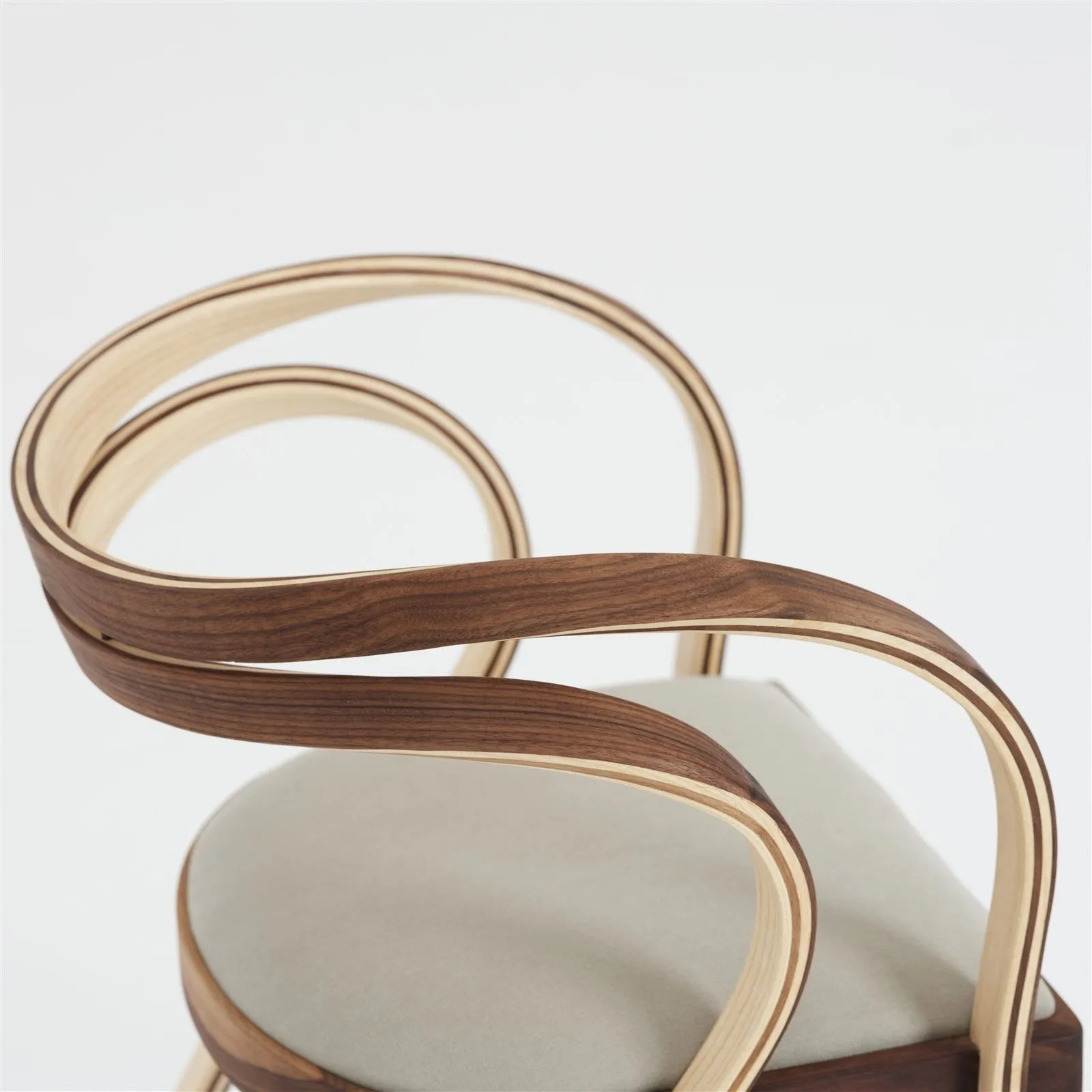

Nina & Beni, detail of the steam-bent arms

Design

Numbered series

Photography: Uxío da Vila

MARINOMAZA stamp

Each piece is made by hand in the workshop in Ajalvir, Madrid, stamped with the MARINOMAZA stamp and numbered within its series. Pieces are available through MARINOMAZA.

Marino Rocker, three-quarter view

Marino Rocker

Rocking chair. Steam-bent solid wood. Numbered series, about ten a year.

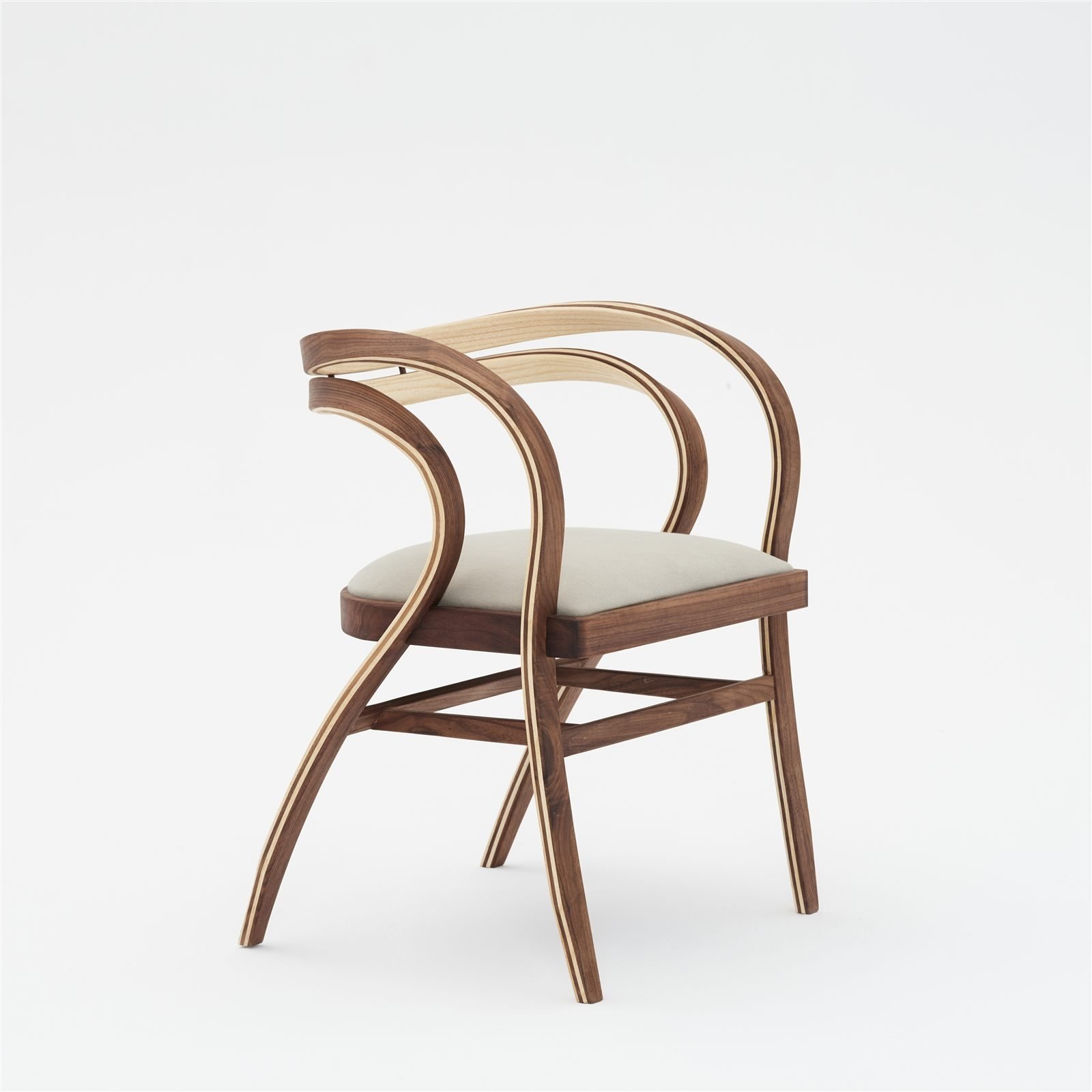

Nina & Beni chair, three-quarter view

Nina & Beni

Chair. Steam-bent solid wood. Numbered series, about fifteen a year.

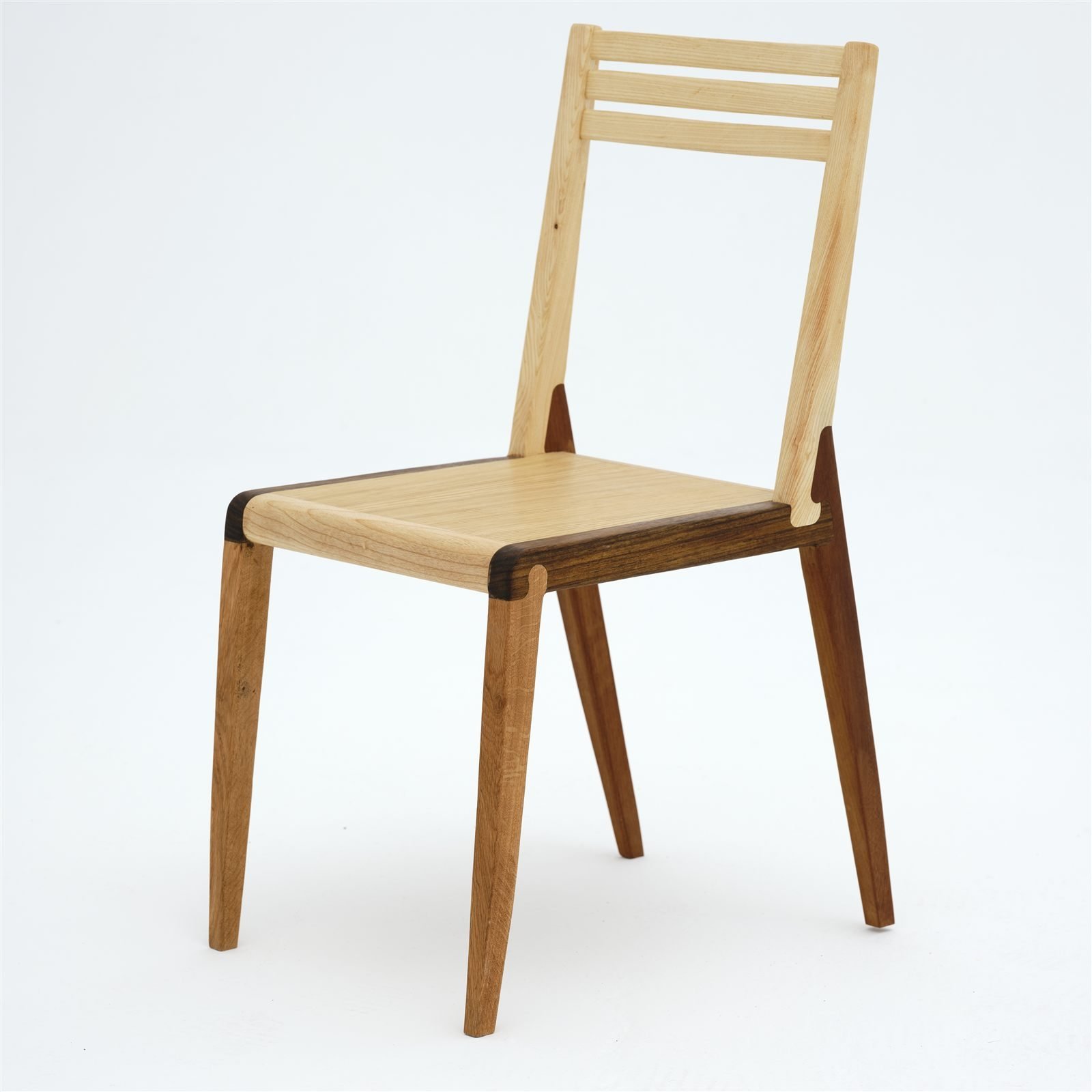

Sapiens chair in solid wood, three-quarter view

Sapiens

Chair. Solid wood, in two woods, with the joints left visible.

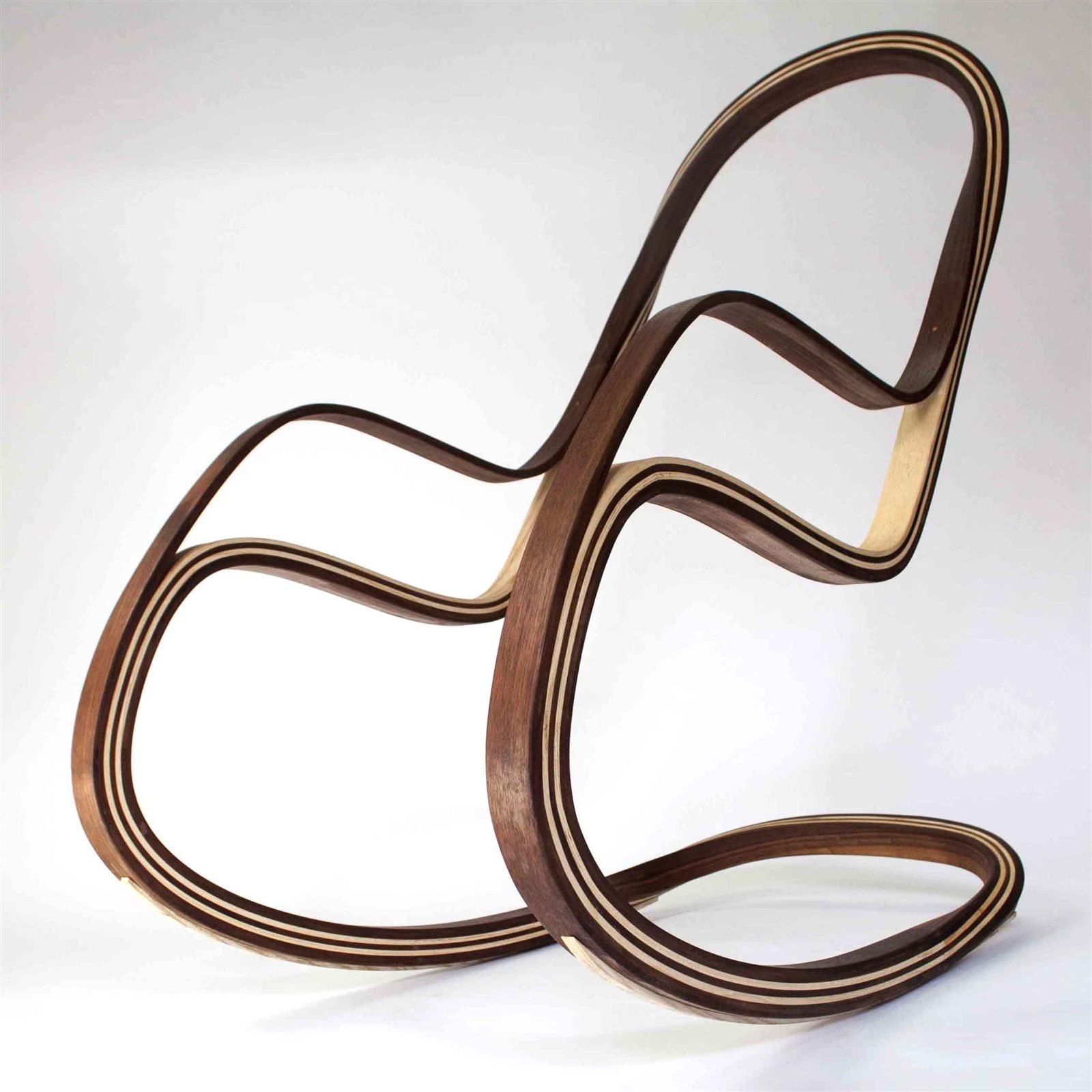

Flect rocking chair in steam-bent laminated wood

Flect

Rocking chair. Steam-bent laminated wood.

Photographs of Marino Rocker, Nina & Beni and Sapiens: Uxío da Vila

Steam-bent laminations clamped around a form

Next · CraftHow the pieces are made
